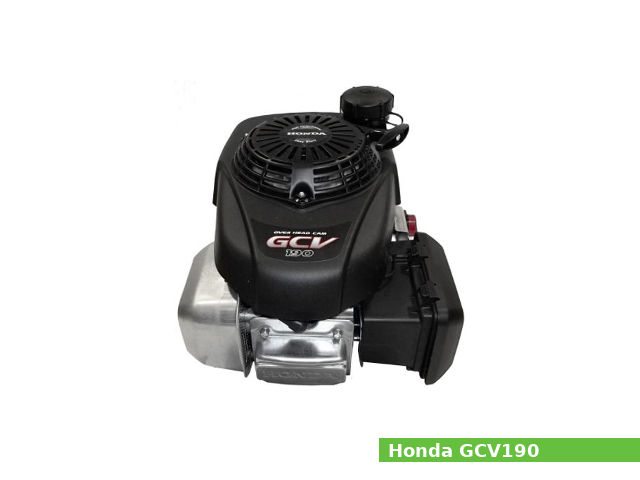

Honda GCV190The Honda GCV190 is a 187 cc (11.41 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a vertical shaft, manufactured by Honda Motor Company for general-purpose applications.

It has a 69.0 mm (2.72 in) cylinder bore and 50.0 mm (1.97 in) piston stroke. The compression ratio rating is 8.5:1.

The Honda GCV190 engine produced 5.2 PS (3.8 kW; 5.1 HP) at 3,600 rpm of maximum output power and 11.3 N·m (1.2 kg·m, 8.3 ft·lb) at 2,500 rpm of peak torque.

The Honda GCV190 features:

  • OHC design
  • Transistorized magneto ignition system
  • Horizontal type carburetor with butterfly valve
  • Centrifugal govervor
  • Splash type lubrication system
  • Forced air cooling system
  • Recoil starter

General information

Engine Specifications
Engine model GCV190
Engine type 4-stroke, OHC, single-cylinder
Displacement 187 cm3, (11.41 cu·in)
Max. horsepower 5.2 PS (3.8 kW; 5.1 HP) at 3,600 rpm
Max. torque 11.3 N·m (1.2 kg·m, 8.3 ft·lb) at 2,500 rpm
Cooling system Forced air
Lubricating system Splash type
Ignition system Transistorized magneto ignition
Fuel system Horizontal type carburetor with butterfly valve
Fuel consumption 230 g/HPh
Fuel tank capacity 0.93 L (0.25 US. gal. 0.2 Imp. gal.)
Fuel used Unleaded gasoline (octane number 86 or higher)
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Governor Centrifugal govervor
PTO shaft rotation Counterclockwise (from PTO shaft side)
Dimensions (L x W X H) 367 x 331 x 349 mm (14.4 x 13 x 13.7 in)
Dry weight 12.5 kg (27.6 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio: 8.5:1
Cylinder bore: 69.0 mm (2.72 in)
Piston stroke: 50.0 mm (1.97 in)
Cylinder internal diameter (standard): 69.000 mm (2.7165 in)
Piston skirt outer diameter (standard): 68.985 mm (2.7159 in)
Number of piston rings (compression / oil): 2/1
Connecting rod big end diameter (standard): 30.020 mm (1.1819 in)
Connecting rod small end diameter (standard): 13.005 mm (0.512 in)
Piston pin diameter: 13.000 mm (0.5118 in)
Side clearance (Top): 0.035-0.065 mm (0.0014-0.0026 in)
Side clearance (Second): 0.015-0.049 mm (0.0006-0.0019 in)
Ring end gap (Top): 0.20-0.35 mm (0.0079-0.0138 in)
Ring end gap (Second): 0.30-0.45 mm (0.0118-0.0177 in)
Ring end gap (Oil): 0.15-0.35 mm (0.0059-0.0138 in)
Ring width (Top): 1.5 mm (0.0591 in)
Ring width (Second): 1.5 mm (0.0591 in)
Ring width (Oil): 2.5 mm (0.0984 in)
Crankshaft main journal diameter: Flywheel side: 25.393 mm (0.9997 in)
PTO side: 27.993 mm (1.1021 in)
Crankpin journal diameter: 29.980 mm (1.1803 in)
Crankshaft center distance: 25.0 mm (0.985 in)
Cylinder head
Valve arrangement: OHC
Valves: 2
Valve steam diameter (INTAKE): 5.480 mm (0.2157 in)
Valve steam diameter (EXHAUST): 5.440 mm (0.2142 in)
Valve spring free length (INTAKE): 34.0 mm (1.3386 in)
Valve spring free length (EXHAUST): 34.0 mm (1.3386 in)

Tightening torque

Tightening torque specs
Air cleaner case bolt 10 Nm; 1.0 kg·m; 7 ft·lb
Connecting rod bolt 12 Nm; 1.2 kg·m; 8.6 ft·lb
Valve adjusting lock nut 8 Nm; 0.8 kg·m; 5.8 ft·lb
Cylinder head cover bolt 12 Nm; 1.2 kg·m; 8.6 ft·lb
Oil drain plug bolt 24 Nm; 2.4 kg·m; 17 ft·lb
Flywheel nut 52 Nm; 5.3 kg·m; 38 ft·lb
Governor arm nut 10 Nm; 1.0 kg·m; 7 ft·lb
Muffler bolt 12 Nm; 1.2 kg·m; 8.6 ft·lb
Recoil starter nut 8.5 Nm; 0.85 kg·m; 6.1 ft·lb
Fan cover stud bolt 12 Nm; 1.2 kg·m; 8.6 ft·lb
Spark plug 20 Nm; 2.0 kg·m; 14 ft·lb
Others
5 mm bolts, nuts 5.5 Nm; 0.55 kg·m; 4.0 ft·lb
6 mm bolts, nuts 10 Nm; 1.0 kg·m; 7 ft·lb
8 mm bolts, nuts 24 Nm; 2.4 kg·m; 17 ft·lb
10 mm bolts, nuts 37 Nm; 3.7 kg·m; 27 ft·lb
12 mm bolts, nuts 55 Nm; 5.5 kg·m; 39.5 ft·lb

Service Data

Engine
Maximum speed: 3,850±150 rpm
Idle speed: 1,400 ±150 rpm
Cylinder compression: 5.0 kg/cm2 (71 psi) at 600 rpm
Valve clearance
Intake valve clearance: 0.11-0.19 mm (0.0043-0.0075 in)
Exhaust valve clearance: 0.16-0.24 mm (0.0063-0.0094 in)
Oil system
Lubrication system: Splash type
Oil type: Honda 4-stroke or an equivalent (SF or SG)
Recommended oil: SAE 10W-30
Oil capacity: 0.55 L (0.58 US. qt, 0.48 Imp. qt.)
Fuel system
Type: Horizontal type carburetor with butterfly valve
Main jet: #68
Float height: 9.2 mm (0.3622 in)
Pilot screw opening: 1-3/4 turns out
Ignition system
Type: Transistorized magneto ignition
Ignition timing: B.T.D.C. 20°
Spark plug: NGK: BPR6ES
Spark plug gap: 0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque: 20 N·m (2 kg·m, 14.7 ft·lb)
Ignition coil air gap 0.2-0.6 mm (0.008-024 in)
