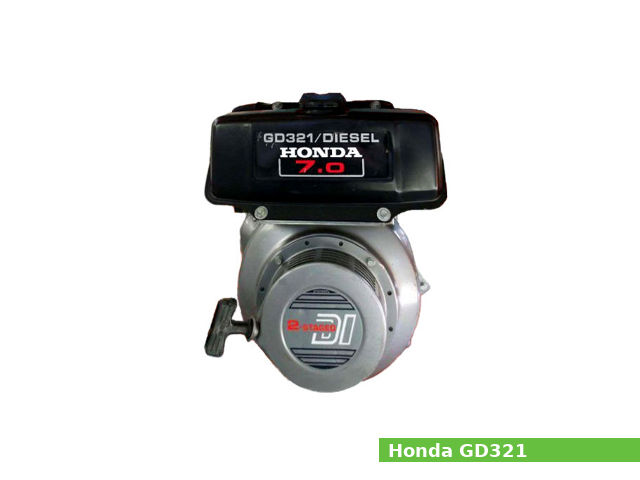

Honda GD321

Honda GD321The Honda GD321 is a 317 cc (19.34 cu·in) natural aspirated single-cylinder four-stroke air-cooled small diesel engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.

It has a 76.0 mm (2.99 in) cylinder bore and 70.0 mm (2.76 in) piston stroke. The compression ratio rating is 19.0:1.

This engine produced from 6.0 PS (4.4 KW; 5.9 HP) at 3,600 rpm to 7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm of horsepower and from 15.7 N·m (1.6 kg·m, 11.6 ft·lb) at 2,500 rpm to 30.4 Nm (3.1 kg·m; 22.44 ft·lb) at 1,250 rpm of torque.

The Honda GD321 features:

  • OHV design
  • Direct injection fuel system
  • Zexel PFRIKX fuel injection pump
  • Zexel DLLA-P injection nozzle
  • Mechanical centrifugal govervor
  • Forced spray lubrication system
  • Forced air cooling system
  • Recoil starter, starter motor

General information

Engine Specifications
Engine modelGD321
Engine type4-stroke, OHV, single-cylinder
Displacement317 cm3, (19.34 cu·in)
Max. horsepower Type S,Q,W,V,P: 7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm
Type B: 6.0 PS (4.4 KW; 5.9 HP) at 3,000 rpm
Type L: 6.8 PS (5.0 KW; 6.7 HP) at 1,800 rpm
Max. torque Type S,Q,W,V,P: 15.7 N·m (1.6 kg·m, 11.6 ft·lb) at 2,500 rpm
Type B: 15.7 N·m (1.6 kg·m, 11.6 ft·lb) at 1,800 rpm
Type L: 30.4 Nm (3.1 kg·m; 22.44 ft·lb) at 1,250 rpm
Cooling systemForced air
Air cleanerDual type and cyclone
Lubricating systemForced spray
Fuel systemDirect injection
Fuel tank capacity4.6 L (1.22 US. gal. 1.01 Imp. gal.)
Fuel usedDiesel fuel
Starting systemRecoil starter, starter motor
Stoping systemFuel cut with speed control lower (Stop lever)
GovernorMechanical centrifugal govervor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)420 x 405 x 470 mm (16.5 x 15.9 x 18.5 in)
Dry weight48.0 kg (105.8 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:19.0:1
Cylinder bore:76.0 mm (2.99 in)
Piston stroke:70.0 mm (2.76 in)
Cylinder internal diameter (standard):76.000-76.017 mm (2.9921-2.9928 in)
Piston skirt outer diameter (standard):75.940-75.960 mm (2.9898-2.9905 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):41.000-41.024 mm (1.6142-1.6151 in)
Connecting rod small end diameter (standard):20.010-20.028 mm (0.7878-0.7885 in)
Side clearance (Top):0.065-0.095 mm (0.0026-0.0037 in)
Side clearance (Second):0.055-0.085 mm (0.0022-0.0033 in)
Side clearance (Oil):0.020-0.055 mm (0.0008-0.0022 in)
Ring end gap (Top):0.200-0.350 mm (0.0079-0.0138 in)
Ring end gap (Second):0.200-0.350 mm (0.0079-0.0138 in)
Ring end gap (Oil):0.200-0.400 mm (0.0079-0.0157 in)
Ring width (Top):1.975-1.990 mm (0.0778-0.0783 in)
Ring width (Second):1.975-1.990 mm (0.0778-0.0783 in)
Ring width (Oil):3.970-3.990 mm (0.1563-0.1571 in)
Crankshaft main journal diameter:46.970-46.994 mm (1.8492-1.8502 in)
Crankpin journal diameter:37.976-38.000 mm (1.4951-1.4961 in)
Crankshaft center distance:35 mm (1.38 in)
Cylinder head
Valve arrangement:OHV
Valves:2
Valve steam diameter (INTAKE):6.575-6.590 mm (0.2589-0.2594 in)
Valve steam diameter (EXHAUST):6.540-6.550 mm (0.2575-0.2579 in)
Valve spring free length (INTAKE):33.7 mm (1.3268 in)
Valve spring free length (EXHAUST):33.7 mm (1.3268 in)
Camshaft lobe height (INTAKE):41.022 mm (1.615 in)
Camshaft lobe height (EXHAUST):41.022 mm (1.615 in)

Tightening torque specs

Tightening torque specs
Cylinder head bolts43 Nm; 4.3 kg·m; 31 ft·lb
Cylinder head nuts11 Nm; 1.1 kg·m; 8 ft·lb
Rocker arm shaft nuts11 Nm; 1.1 kg·m; 8 ft·lb
Tappet adjusting nuts9 Nm; 0.9 kg·m; 6.5 ft·lb
Oil pan bolt bolts M11: 71 Nm; 7.1 kg·m; 51 ft·lb
M8: 22 Nm; 2.2 kg·m; 16 ft·lb
Connecting rod cap nuts32 Nm; 3.2 kg·m; 23 ft·lb
Relief valve33 Nm; 3.3 kg·m; 24 ft·lb
Drain plug bolt33 Nm; 3.3 kg·m; 24 ft·lb
Flywheel nut250 Nm; 25.0 kg·m; 180 ft·lb
Injection nozzle10 Nm; 1.0 kg·m; 7 ft·lb
Air breather joint nuts18 Nm; 1.8 kg·m; 13 ft·lb
Fuel injection pump bolts22 Nm; 2.2 kg·m; 16 ft·lb
Fuel joint bolts28 Nm; 2.8 kg·m; 20 ft·lb
Air breather bolt18 Nm; 1.8 kg·m; 13 ft·lb
Fuel pipe nuts20 Nm; 2.0 kg·m; 14 ft·lb
Muffler nuts, bolts22 Nm; 2.2 kg·m; 16 ft·lb
Fuel tank bolts11 Nm; 1.1 kg·m; 18 ft·lb
Fuel filter bolts11 Nm; 1.1 kg·m; 18 ft·lb
Drain bolt11 Nm; 1.1 kg·m; 18 ft·lb
Others
5 mm bolts, nuts5.0 Nm; 0.50 kg·m; 4.0 ft·lb
6 mm bolts, nuts10 Nm; 1.0 kg·m; 7 ft·lb
8 mm bolts, nuts21 Nm; 2.1 kg·m; 15 ft·lb
10 mm bolts, nuts35 Nm; 3.5 kg·m; 25 ft·lb
12 mm bolts, nuts60 Nm; 6.0 kg·m; 44 ft·lb

Service Data

Engine
Maximum speed:3,700±150 rpm
Idle speed:1,450±150 rpm
Cylinder compression:26.0 kg/cm2 (370 psi) at 300 rpm
Valve clearance
Intake valve clearance:0.13-0.17 mm (0.0051-0.0067 in)
Exhaust valve clearance:0.13-0.17 mm (0.0051-0.0067 in)
Oil system
Lubrication system:Forced spray
Oil type:Diesel oil (API CC or CD)
Recommended oil:SAE 10W-30
Oil capacity:1.15 L (1.22 US. qt, 1.01 Imp. qt.)
Oil pressure:3.9-5.2 kg/cm2 (55.5-74.0 psi) at 3,600 rpm
