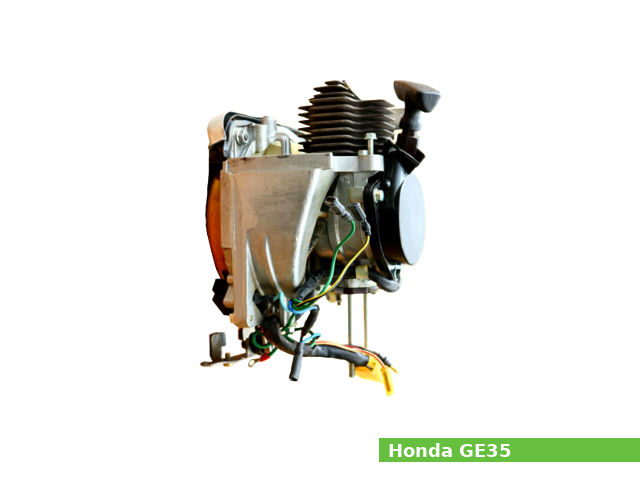

The Honda GE35 is a 34 cc, (2.1 cu·in) natural aspirated single-cylinder two-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.
The Honda GE35 engine has a single-cylinder, compact combustion chamber, and horizontal PTO-shaft. This engine is equipped with Capacitor Discharge Ignition (CDI) system, horizontal type carburetor, and recoil starter.
The Honda GE35 engine produced 0.9 PS (0.67 kW; 0.9 HP) at 4,500 rpm of maximum output power and 1.47 N·m (0.1 kg·m, 1.1 ft·lb) at 3,000 rpm of peak torque.
General information
| Engine Specifications | |
| Engine model | GE35 |
| Engine type | 2-stroke, OHV, single-cylinder |
| Displacement | 34.4 cm3, (2.07 cu·in) |
| Max. horsepower | 0.9 PS (0.67 kW; 0.9 HP) at 4,500 rpm |
| Max. torque | 1.47 N·m (0.1 kg·m, 1.1 ft·lb) at 3,000 rpm |
| Cooling system | Forced air |
| Lubricating system | Gas/Oil mixture, Mixing ratio 50:1 |
| Ignition system | Capacitor Discharge Ignition (CDI) |
| Fuel system | Horizontal type carburetor |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Starting system | Recoil starter |
| Stoping system | Ignition primary circuit ground |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
| Dimensions (L x W X H) | – |
| Dry weight | – |
Cylinder Block and Head
It has a 37.0 mm (1.46 in) cylinder bore and 32.0 mm (1.26 in) piston stroke. The compression ratio rating is 6.7:1.
| Cylinder block | |
| Compression ratio: | 6.7:1 |
| Cylinder bore: | 37.0 mm (1.46 in) |
| Piston stroke: | 32.0 mm (1.26 in) |
| Cylinder internal diameter (standard): | 37.000 mm (1.4567 in) |
| Piston skirt outer diameter (standard): | 36.970 mm (1.4555 in) |
| Number of piston rings (compression / oil): | 2 / 1 |
| Side clearance (Top): | 0.015-0.045 mm (0.0006-0.0018 in) |
| Side clearance (Second): | 0.015-0.045 mm (0.0006-0.0018 in) |
| Side clearance (Oil): | 0.015-0.045 mm (0.0006-0.0018 in) |
| Ring end gap (Top): | 0.10-0.45 mm (0.0039-0.0177 in) |
| Ring end gap (Second): | 0.10-0.45 mm (0.0039-0.0177 in) |
Service Data
| Idle speed: | 3,100 rpm |
| Compression pressure | |
| Standard: | 8.2 kg/cm2 |
| Oil system | |
| Lubrication: | Gas/Oil mixture, Mixing ratio 50:1 |
| Fuel system | |
| Type: | Horizontal type carburetor |
| Main jet: | #70 |
| Float height: | 19.2-21.2 mm (0.76-0.83 in) |
| Pilot screw opening: | 2 1/2 turns or 1 turns turns out |
| Ignition system | |
| Type: | Capacitor Discharge Ignition (CDI) |
| Spark plug: | NGK: BMR-6A NipponDenso: W29MR-U |
| Spark plug gap: | 0.6-0.7 mm (0.0236-0.0276 in) |
Applications
| Manufacturer or Brand | Models |
| Tillers | |
| Honda | F110 |
