Honda F110

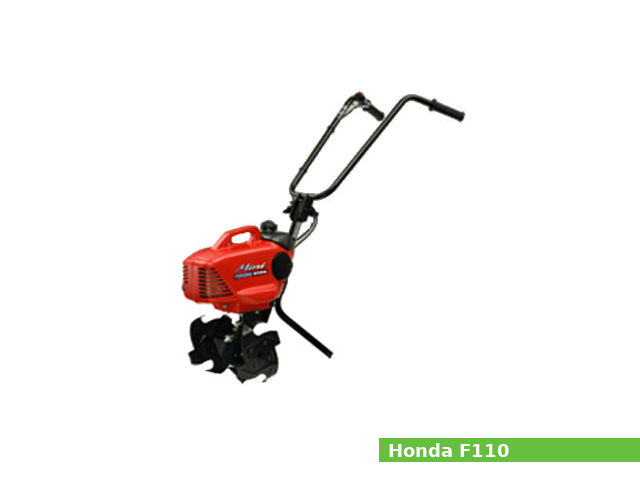

Honda F110 tillerThe Honda F110 tiller, is equipped with small 2-stroke general-purpose Honda GE35 engine (34.4 cc; 2.11 cu.in.) and worm gear / warm wheel type transmission system. The engine uses a single-element air cleaner, horizontal carburetor with a butterfly valve, the centrifugal governor and recoil starter.

The Honda GE35 is a single-cylinder air-cooled 2-stroke internal combustion engine with 37.0 mm (1.46 in) cylinder bore and 32.0 mm (1.26 in) piston stroke. Compression ratio rating is 6.7:1. The engine produced 1.0 HP at 4,800 rpm of maximum output power and 1.7 Nm (0.175 kg·m) at 3,500 rpm of torque.

General information

Tiller, Rotavator, Cultivator Specifications
Model Honda F110
Dimensions (L x W x H): 1115 x 460 x 960 mm (43.9 x 18.1 x 37.8 in)
Dry weight (without tines) 16.0 kg (35.27 lbs)
Operating weight 16.5 kg (36.237 lbs)
Engine
Engine model Honda GE35
Displacement 34.4 cm3 (2.11 cu-in)
Bore x stroke 37 mm X 32 mm (1.5 x 1.3 in)
Max. horsepower 1.0 HP at 4,800 rpm
Max. torque 1.7 Nm (0.175 kg·m) at 3,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Gas/Oil mixture, Mixing ratio 100:1
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Transmission and clutch
Transmission Worm gear / warm wheel
Clutch type Internal expanding shoe

Maintenance data

Oil system
Oil type Honda 2-stroke
Engine oil capacity Gas/Oil mixture, Mixing ratio 100:1
Transmission oil Idemitsu #420
Transmission oil capacity 60 cc (2.1 Imp oz)
Ignition system
Spark plug NGK: BMR-4A
Spark plug gap 0.6-0.7 mm (0.024-0.028 in)
