Honda iGX440

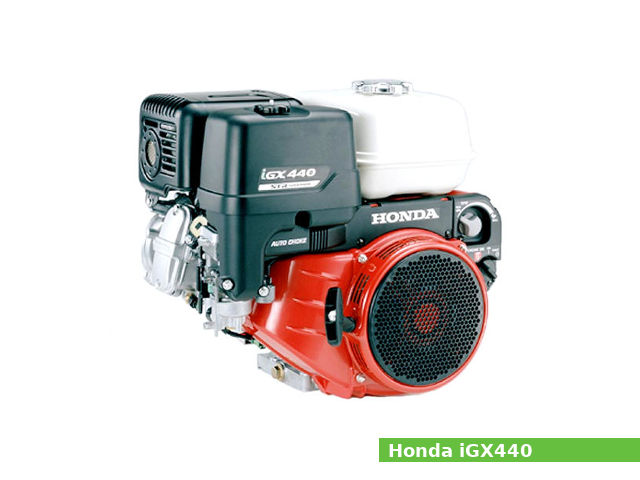

Honda iGX440The Honda iGX440 is a 438 cc (26.73 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.

A 88.0 mm (3.46 in) cylinder bore and 72.1 mm (2.84 in) piston stroke give the iGX440 engine a total of 438 cc of displacement. The compression ratio rating is 8.1:1.

This engine produced 15.2 PS (11.2 kW; 15.0 HP) at 3,600 rpm of horsepower and 29.8 N·m (3 kg·m, 22 ft·lb) at 2,500 rpm of torque.

The Honda iGX440 features:

  • OHV design
  • Cast iron cylinder sleeve
  • Ball bearing supported crankshaft
  • Heavy-duty balancer shaft
  • C.D.I.(Capacitor Discharge Ignition)
  • Horizontal type carburetor with butterfly valve
  • ECU (electronic control unit) with a self-tuning regulator (STR) governor system
  • Forced splash lubrication system
  • Forced air cooling system
  • Recoil or electric starter

General information

Engine Specifications
Engine modeliGX440U
Engine type4-stroke, OHV, single-cylinder
Displacement438 cm3, (26.73 cu·in)
Max. horsepower15.2 PS (11.2 kW; 15.0 HP) at 3,600 rpm
Max. torque29.8 N·m (3 kg·m, 22 ft·lb) at 2,500 rpm
Cooling systemForced air
Air cleanerDual-element type
Lubricating systemForced splash
Ignition systemC.D.I.(Capacitor Discharge Ignition)
Fuel systemHorizontal type carburetor with butterfly valve
Fuel consumption3.5 Liters (0.92 US gal, 0.77 Imp gal) / h
Fuel tank capacity6.5 L (1.72 US. gal. 1.43 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil or electric starter
Stoping systemIgnition primary circuit ground
GovernorSelf-tuning regulator (STR) governor system
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)433 x 505 x 454 mm (17.0 x 19.9 x 17.9 in)
Dry weight39.0 kg (86.0 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:8.1:1
Cylinder bore:88.0 mm (3.46 in)
Piston stroke:72.1 mm (2.84 in)
Cylinder internal diameter (standard):88.000-88.017 mm (3.4646-3.4652 in)
Piston skirt outer diameter (standard):87.985-87.965 mm (3.464-3.4632 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):40.039-40.025 mm (1.5763-1.5758 in)
Connecting rod small end diameter (standard):20.994-21.000 mm (0.8265-0.8268 in)
Piston pin diameter:20.994-21.000 mm (0.8265-0.8268 in)
Side clearance (Top):0.030-0.050 mm (0.0012-0.002 in)
Side clearance (Second):0.030-0.050 mm (0.0012-0.002 in)
Ring end gap (Top):0.200-0.350 mm (0.0079-0.0138 in)
Ring end gap (Second):0.350-0.500 mm (0.0138-0.0197 in)
Ring width (Top):1.475-1.490 mm (0.0581-0.0587 in)
Ring width (Second):1.475-1.490 mm (0.0581-0.0587 in)
Crankpin journal diameter:39.975-39.985 mm (1.5738-1.5742 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valve steam diameter (INTAKE):5.478-5.490 mm (0.2157-0.2161 in)
Valve steam diameter (EXHAUST):5.435-5.450 mm (0.214-0.2146 in)
Valve spring free length (INTAKE):46.3 mm (1.8228 in)
Valve spring free length (EXHAUST):46.3 mm (1.8228 in)
Camshaft lobe height (INTAKE):30.736-31.136 mm (1.2101-1.2258 in)
Camshaft lobe height (EXHAUST):30.145-30.545 mm (1.1868-1.2026 in)
Camshaft journal diameter :21.470-21.500 mm (0.8453-0.8465 in)

Tightening torque specs

Tightening torque specs
Connecting rod bolt14 Nm; 1.4 kg·m; 10 ft·lb
Cylinder head bolt35 Nm; 3.5 kg·m; 25 ft·lb
Flywheel nut165 Nm; 16.8 kg·m; 122 ft·lb
Bearing holder bolt26 Nm; 2.6 kg·m; 19 ft·lb
Crankcase cover bolt24 Nm; 2.4 kg·m; 17 ft·lb
Cam pulley bolt16 Nm; 1.6 kg·m; 12 ft·lb
Rocker arm shaft bolt23 Nm; 2.3 kg·m; 17 ft·lb
Starter motor nut8.8 Nm; 0.9 kg·m; 6.5 ft·lb
Standard torque values
Bolt, nut (5 mm)5.5 Nm; 0.55 kg·m; 4.0 ft·lb
Bolt, nut (6 mm)10 Nm; 1.0 kg·m; 7 ft·lb
Bolt, nut (8 mm)24 Nm; 2.4 kg·m; 17 ft·lb
Bolt, nut (10 mm)37.5 Nm; 3.75 kg·m; 27 ft·lb
Bolt, nut (12 mm)55 Nm; 5.5 kg·m; 40 ft·lb

Service Data

Maximum speed:3,600±150 rpm
Idle speed:1,400±150 rpm
Cylinder compression:4-7 kg/cm2 (57-100 psi, 0.39-0.68 MPa) at 600 rpm
Valve clearance
Intake valve clearance:0.15±0.02 mm (0.006±0.001 in)
Exhaust valve clearance:0.20±0.02 mm (0.008±0.001 in)
Oil system
Lubrication system:Forced splash
Oil type:Honda 4-stroke or an equivalent (SE or later)
Recommended oil:SAE 10W-30
Oil capacity:1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Fuel system
Type:Horizontal type carburetor with butterfly valve
Main jet:#112
Float height:13.2 mm (0.5197 in)
Pilot screw opening:1-5/8 turns out
Ignition system
Type:C.D.I.(Capacitor Discharge Ignition)
Ignition timing: B.T.D.C. 10° / 1,400 rpm
B.T.D.C. 13° / 3,600 rpm
Spark plug:NGK: BKR7E-E DENSO: K22PR-UR
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
