Kubota A-19

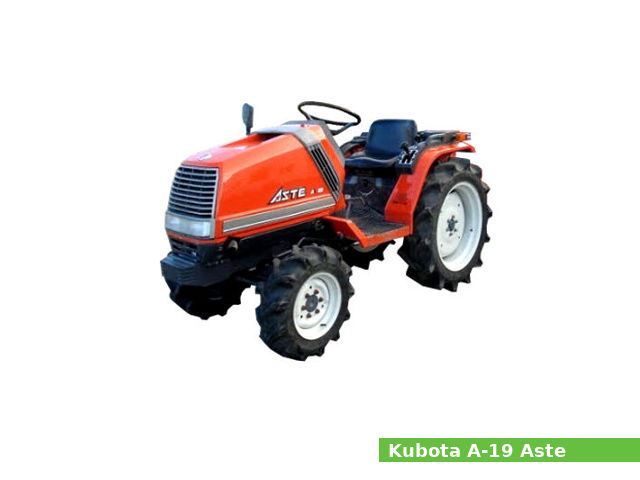

Kubota A-19The Kubota A-19 is a sub-compact utility tractor model from the Aste series, manufactured from 1988 to 1992 by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota A-19 is equipped with a 1.1 L (68.7 cu·in) three-cylinder diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke, and transmission with 6 forward and 2 reverse gears.

The Kubota A-19 sub-compact utility tractor features:

  • The D1105 diesel engine which produces 18.5 PS (13.6 kW; 18.2 HP) at 2,600 rpm of horsepower
  • Open operator station with two-post ROPS
  • Category 0 rear hitch
  • Rear PTO with 540 rpm

General specifications

General Specifications
Model Kubota A-19
Tractor type Sub-compact utility tractor
Production years 1988-1992
Factory
Dimensions and weight
Length 2,530 mm (99.6 in)
Width 1,040 mm (40.9 in)
Height 1,270 mm (50 in)
Wheel base 1,350 mm (53.1 in)
Ground clearance 300 mm (11.8 in)
Weight 670 kg (1,477 lbs)
Fuel capacity
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1105
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.1 L, 1,123 cm3, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Max. horsepower 18.5 PS (13.6 kW; 18.2 HP) at 2,600 rpm
Cooling system Liquid-cooled
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×4 4WD
Steering type
Brakes
Transmission
Transmission manufacturer or model
Transmission type
Gears 6 forward and 2 reverse
Speed Forward: 13.7 kmh (8.5 mph)
Reverse: 6.4 kmh (4 mph)

Tires

Tires
Front tires Ag: 6-12
Rear tires Ag: 8.3-20

Rear Hitch

Three-Point Hitch
Category 0
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Rear PTO type
Rear PTO speed 540 rpm

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V
