Kubota B2410 compact utility tractor specs and service data

The Kubota B2410 is a compact utility tractor model from the L series, manufactured from 2000 to 2005 by Kubota. It was available in two-wheel drive (2WD) or four-wheel drive (4WD) versions.

The Kubota B2410 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke, and one of two transmissions: a gear shift transmission with 6 forward and 2 reverse gears and with dry single-plate type clutch, or a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota B2410 compact utility tractor features:

The Kubota D1105 diesel engine which produces 24.3 PS (17.9 kW; 24.0 HP) at 2,600 rpm of horsepower
Integral type power steering
Wet disc type brakes
Open operator station with two-post ROPS
Category I rear hitch with 750 kg (1654 lbs) of maximum lift capacity
Middle PTO with 2,500 rpm
Live rear PTO with 540 rpm

The Kubota B2410 variants:

B2410HSE – 2WD version
B2410HSD – 4WD version
B2410HSDB – 4WD bi-speed turn

General specifications

General Specifications
Model	Kubota B2410
Tractor type	Compact utility tractor
Production years	2000-2005
Factory	–
Dimensions and weight
Length	2,430 mm (95.7 in)
Width	1,050 mm (41.3 in)
Height	2,298 mm (90.5 in)
Wheel base	1,500 mm (59.1 in)
Weight	692 kg (1,526 lbs)
Fuel capacity
Fuel tank capacity	24.0 liters (6.3 US gal.; 5.3 Imp. gal)

Engine

Engine Specifications
Engine model	Kubota D1105
Engine type	4-stroke, SOHC, three-cylinders
Displacement	1.1 L, 1,123 cm³, (68.5 cu·in)
Bore and stroke	78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Max. horsepower	24.3 PS (17.9 kW; 24.0 HP) at 2,600 rpm
Max. torque	67.0 N·m (6.8 kg·m, 49.4 ft·lb)
Cooling system	Liquid-cooled
Coolant capacity:	3.8 L (4 US. qt, 3.3 Imp. qt.)
Fuel used	Diesel fuel
Starting system	Electric starting with 12V starter
Starting support device	Glow plug in combustion chamber
Governor	All speed mechanical governor
Charging system	Alternator 12V
PTO shaft rotation	Counterclockwise
Valve clearance
Intake valve clearance:	0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance:	0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system:	Forced lubrication by trochoid pump
Oil type:	CF or higher
Recommended oil:	SAE 10W-30, 10W-40
Oil capacity:	3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Oil pressure:	At idle speed: 49 MPa (0.5 kgf/cm², 7 psi) At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm², 28 to 64 psi)
Oil filter:	Full flow paper filter (Cartridge type)
Oil pressure indicating:	Electrical type switch
Oil and oil filter change interval:	Every 200 hours
Fuel system
Fuel injection pump:	Bosch MD type mini fuel injection pump
Injection nozzle:	Mini Nozzle (DNOPD)
Firing order:	1-2-3
Injection pressure:	13.73 MPa (140 kgf/cm², 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD or 4×4 MFWD 4WD
Steering type	Integral type power
Brakes	Wet disc type
Transmission
Transmission manufacturer or model	–
Transmission type	Gear shift with dry single plate type clutch
Gears	6 forward and 2 reverse
Speed	Forward: 19.1 kmh (11.9 mph) Reverse: 7.9 kmh (4.9 mph)
Transmission oil capacity	11.5 L (3 US. gal, 2.5 Imp. gal.)
Transmission № 2
Transmission manufacturer or model	–
Transmission type	Hydrostatic
Gears	Infinite (2-range) forward and reverse
Speed	Forward: 22.4 kmh (13.9 mph) Reverse: 18.0 kmh (11.2 mph)
Transmission oil capacity	12.5 L (3.3 US. gal, 2.7 Imp. gal.)

Tires

Tires
Front tires	Ag: 6.00-12
Rear tires	Ag: 9.5-18

Rear Hitch

Three-Point Hitch
Category	I
Control type	Position control
Lift capacity (at ends)	750 kg (1,654 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO type	–
Middle PTO speed	2,500 rpm
Rear PTO type	Live
Rear PTO speed	540 rpm

Electrical system

Electrical system
Ground	Negative
Charging system	–
Charging amps	–
Battery	12V, CCA: 433A

Hydraulic system

Hydraulic system
Hydraulic type	Open center
Pump flow	4.4 gpm (16.7 lpm)
Steering flow	2.6 gpm (9.8 lpm)
Total flow	7.0 gpm (26.5 lpm)

Attachments

Kubota RCK54-24B: 54″ mid-mount mower deck with 3-blade and hydraulic lift
Cutting width	1,370 mm (54 in)
Weight	156 kg (344 lbs)
Cut height	30-100 mm (1.5 to 4 in)
Kubota RCK60-24B: 60″ mid-mount mower deck with 3-blade and hydraulic lift
Cutting width	1,520 mm (60 in)
Weight	157 kg (348 lbs)
Cut height	30-100 mm (1.5 to 4 in)
Kubota FZB2019: 60″ front-mount blade
Cutting width	1,520 mm (60 in)
Height	440 mm (17.5 in)
Lift height	190 mm (7.5 in)
Cut depth	60 mm (2.5 in)
Kubota B2650: 50″ front-mount two-stage snow blower
Cutting width	1,270 mm (50 in)
Kubota B2660: 60″ front-mount two-stage snow blower
Cutting width	1,520 mm (60 in)
Kubota LA402 loader
Height (to pin):	2,070 mm (81.5 in)
Clearance, dumped bucket:	1,660 mm (65.5 in)
Dump reach:	600 mm (26.0 in)
Dump angle:	40°
Reach at ground:	1,370 mm (54.1 in)
Rollback angle:	26°
Breakout force (at pin):	763 kg (1,685 lbs)
Lift to full height (at pin):	480 kg (1,060 lbs)
Bucket width:	1,370 mm (54.0 in)
Kubota LA352 loader
Height (to pin):	1,760 mm (69.6 in)
Clearance, dumped bucket:	1,310 mm (51.6 in)
Dump reach:	630 mm (25.0 in)
Dump angle:	45°
Reach at ground:	1,320 mm (52.0 in)
Rollback angle:	24°
Breakout force (at pin):	606 kg (1,336 lbs)
Lift to full height (at pin):	420 kg (925 lbs)
Bucket width:	1,270 mm (50.0 in)
Kubota B4672A backhoe
Digging depth:	1,870 mm (73.9 in)
Reach from pivot:	2,490 mm (98.1 in)
Loading height:	1,650 mm (65.0 in)
Bucket force:	1,338 kg (2,950 lbs)
Dipperstick force:	790 kg (1,740 lbs)
Weight:	383 kg (845 lbs)

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

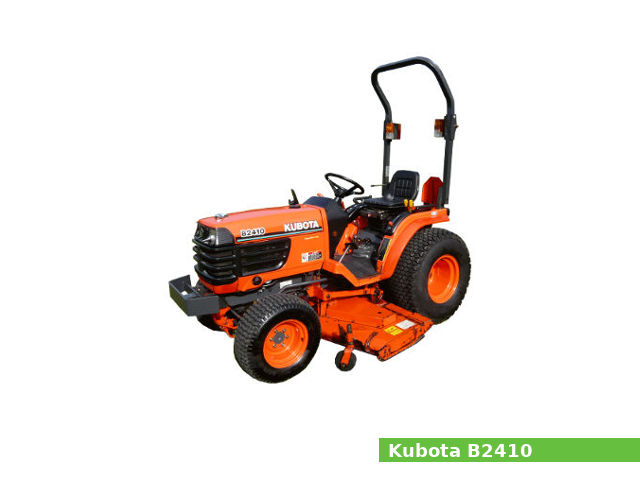

Kubota B2410
