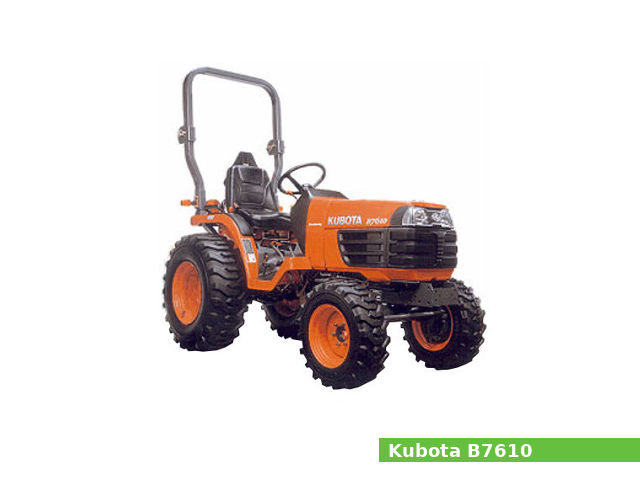

The Kubota B7610 is a compact utility tractor model from the B7x10 series, manufactured from 2004 to 2007 by Kubota. It was available in four-wheel drive (4WD) version.
The Kubota B7610 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke, and a hydrostatic transmission with infinite (2-range) forward and reverse gears.
The Kubota B7610 utility tractor features:
- The Kubota D1105-E-D16 diesel engine which produces 24.3 PS (17.9 kW; 24.0 HP) of horsepower.
- Power steering
- Wet disc type brakes
- Open operator station with two-post ROPS
- Category I rear hitch with 615 kg (1,356 lbs) of maximum lift capacity
- Middle PTO with 2,500 rpm
- Independent rear PTO with 540/960 rpm
General specifications
| General Specifications |
| Model |
Kubota B7610 |
| Tractor type |
Compact utility tractor |
| Production years |
2004-2007 |
| Factory |
– |
| Dimensions and weight |
| Length |
2,320 mm (91.3 in)
|
| Width |
1,170 mm (46.1 in)
|
| Height |
1,960 mm (77.2 in)
|
| Wheel base |
1,500 mm (59.1 in)
|
| Weight |
620 kg (1,367 lbs)
|
| Fuel capacity |
| Fuel tank capacity |
20.0 liters (5.3 US gal.; 4.4 Imp. gal) |
Engine
| Engine Specifications |
| Engine model |
Kubota D1105-E-D16 |
| Engine type |
4-stroke, SOHC, three-cylinders |
| Displacement |
1.1 L, 1,123 cm3, (68.5 cu·in) |
| Bore and stroke |
78.0 mm X 78.4 mm (3.07 in X 3.09 in) |
| Max. horsepower |
24.3 PS (17.9 kW; 24 HP) at rpm |
| Cooling system |
Liquid-cooled |
| Coolant capacity: |
3.8 L (4 US. qt, 3.3 Imp. qt.) |
| Fuel used |
Diesel fuel |
| Starting system |
Electric starting with 12V starter |
| Starting support device |
Glow plug in combustion chamber |
| Governor |
All speed mechanical governor |
| Charging system |
Alternator 12V |
| PTO shaft rotation |
Counterclockwise |
| Valve clearance |
| Intake valve clearance: |
0.145-0.185 mm (0.0057-0.0073 in) |
| Exhaust valve clearance: |
0.145-0.185 mm (0.0057-0.0073 in) |
| Oil system |
| Lubrication system: |
Forced lubrication by trochoid pump |
| Oil type: |
CF or higher |
| Recommended oil: |
SAE 10W-30, 10W-40 |
| Oil capacity: |
3.0 L (3.2 US. qt, 2.6 Imp. qt.) |
| Oil pressure: |
At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
|
| Oil filter: |
Full flow paper filter (Cartridge type) |
| Oil pressure indicating: |
Electrical type switch |
| Oil and oil filter change interval: |
Every 200 hours |
| Fuel system |
| Fuel injection pump: |
Bosch MD type mini fuel injection pump |
| Injection nozzle: |
Mini Nozzle (DNOPD) |
| Firing order: |
1-2-3 |
| Injection pressure: |
13.73 MPa (140 kgf/cm2, 1,991 psi) |
Transmission and chassis
| Chassis, steering and brakes |
| Chassis |
4×4 MFWD 4WD |
| Steering type |
Power |
| Brakes |
Wet disc type |
| Transmission |
| Transmission manufacturer or model |
– |
| Transmission type |
Hydrostatic |
| Gears |
Infinite (2-range) forward and reverse |
| Speed |
Forward: 5.8 kmh (3.6 mph)
Reverse: 14.7 kmh (9.1 mph)
|
| Transmission oil capacity |
15.0 L (4 US. gal, 3.3 Imp. gal.) |
Tires
| Tires |
| Front tires |
Ag: 7-12 |
| Rear tires |
Ag: 11.2-16 |
Rear Hitch
| Three-Point Hitch |
| Category |
I |
| Control type |
Quarter inching valve |
| Lift capacity (at ends) |
615 kg (1,356 lbs) |
PTO (Power take-off shaft)
| PTO |
| Middle PTO type |
– |
| Middle PTO speed |
2,500 rpm |
| Rear PTO type |
Independent |
| Rear PTO speed |
540/960 rpm |
Electrical system
| Electrical system |
| Ground |
Negative |
| Charging system |
– |
| Charging amps |
– |
| Battery |
12V, CCA: 433A |
Hydraulic system
| Hydraulic system |
| Hydraulic type |
Open center |
| Valves |
1 |
| Pump flow |
4.4 gpm (16.7 lpm) |
| Steering flow |
2.6 gpm (9.8 lpm) |
| Total flow |
7.0 gpm (26.5 lpm) |
Attachments
| Kubota RCK54: 54″ mid-mount mower deck with 3-blade |
| Cutting width |
1,370 mm (54 in) |
| Weight |
156 kg (344 lb) |
| Cut height |
30-100 mm (1.5 to 4 in) |
| Kubota RCK60: 60″ mid-mount mower deck with 3-blade |
| Cutting width |
1,520 mm (60 in) |
| Weight |
157 kg (348 lb) |
| Cut height |
30-100 mm (1.5 to 4 in) |
| Kubota LA352 loader |
| Height (to pin): |
1,760 mm (69.6 in) |
| Clearance, dumped bucket: |
1,310 mm (51.6 in) |
| Dump reach: |
630 mm (25.0 in) |
| Dump angle: |
45° |
| Reach at ground: |
1,320 mm (52.0 in) |
| Rollback angle: |
24° |
| Breakout force (lift): |
605 kg (1,335 lbs) |
| Lift to full height (at pin): |
420 kg (925 lbs) |
| Bucket width: |
1,270 mm (50.0 in) |
| Kubota B4672 backhoe |
| Weight: |
383 kg (845 lbs) |
| Transport height: |
1710 mm (67.7 in) |
| Bucket width: |
250 mm (10 in)
300 mm (12 in)
400 mm (16 in)
600 mm (24 in)
|
| Digging depth: |
1,870 mm (73.9 in) |
| Reach from pivot: |
2,490 mm (98.1 in) |
| Loading height: |
1,650 mm (65 in) |
| Bucket force: |
1,338 kg (2,950 lbs) |
| Dipperstick force: |
789 kg (1,740 lbs) |
