Kubota BX2660

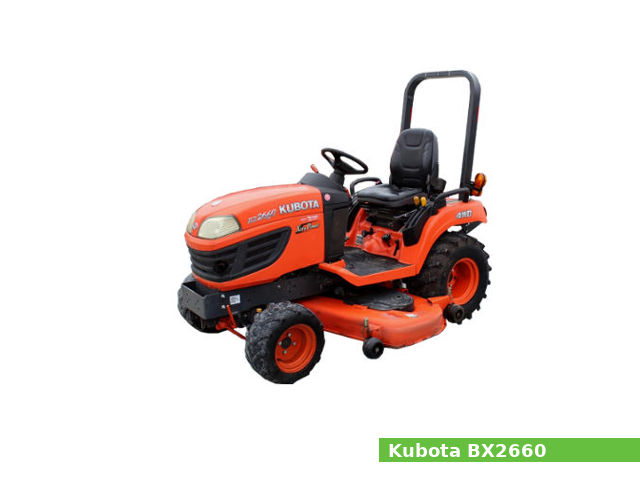

Kubota BX2660The Kubota BX2660 is a compact utility tractor model from the BX60 series, manufactured from 2008 to 2013 by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota BX2660 is equipped with a 1.0 L (61.1 cu·in) three-cylinder diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke, and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota BX2660 compact utility tractor features:

  • The Kubota D1005 diesel engine which produces 25.8 PS (19.0 kW; 25.5 HP) at 3,200 rpm of horsepower
  • Hydrostatic power steering
  • Wet disc type brakes
  • Two-post fixed ROPS, Canopy (optional)
  • Category I rear hitch with 450 kg (992 lbs) of maximum lift capacity
  • Independent middle PTO with 2,500 rpm
  • Independent rear PTO with 540 rpm

General specifications

General Specifications
Model Kubota BX2660
Tractor type Compact utility tractor
Production years 2008-2013
Factory
Dimensions and weight
Length 2,120 mm (83.5 in)
Width 1,145 mm (45.1 in)
Height 1,785 mm (70.3 in)
Wheel base 1,400 mm (55.1 in)
Weight 640 kg (1,411 lbs)
Fuel capacity
Fuel tank capacity 25.0 liters (6.6 US gal.; 5.5 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1005
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.0 L, 1,001 cm2, (61.1 cu·in)
Bore and stroke 76.0 mm x 73.6 mm (3.0 in x 2.9 in)
Max. horsepower 25.8 PS (19.0 kW; 25.5 HP) at 3,200 rpm
Max. torque 60.2 N·m (6.1 kg·m, 44.4 ft·lb)
Cooling system Liquid-cooled
Coolant capacity: 2.7 L (2.9 US. qt, 2.4 Imp. qt.)
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil capacity: 3.1 L (3.3 US. qt, 2.7 Imp. qt.)
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 13.0 kmh (8.1 mph)
Reverse: 10.0 kmh (6.2 mph)
Transmission oil capacity 11.7 L (3.1 US. gal, 2.6 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 18×8.5-10
Rear tires Lawn/turf: 26×12-12

Rear Hitch

Three-Point Hitch
Category I
Control type Directional control, auto-return lever system
Lift capacity (at ends) 450 kg (992 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO type Independent
Middle PTO speed 2,500 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm

Electrical system

Electrical system
Ground Negative
Charging system Alternator
Charging amps 40A
Battery 12V, CCA: 535A

Hydraulic system

Hydraulic system
Hydraulic type Open center
Hydraulic capacity 11.7 L (3.1 US. gal, 2.6 Imp. gal.)
Pump flow 6.2 gpm (23.5 lpm)

Attachments

Kubota RCK54: 54″ mid-mount mower deck
Cutting width 1,370 mm (54 in)
Weight 94 kg (209 lbs)
Cut heigh 20-100 mm (1-4 in)
Kubota RCK60: 60″ mid-mount mower deck
Cutting width 1,520 mm (60 in)
Weight 113 kg (250 lbs)
Cut heigh 20-100 mm (1-4 in)
Kubota LA243 loader
Height (to pin): 1,810 mm (71.3 in)
Clearance, dumped bucket: 1,330 mm (52.4 in)
Dump reach: 730 mm (28.9 in)
Dump angle: 45°
Rollback angle: 29°
Breakout force (lift): 450 kg (990 lbs)
Lift to full height (at pin): 337 kg (745 lbs)
Bucket capacity: 0.1 cu.m (0.18 cu.yd)
Bucket width: 1,210 mm (48.0 in)
