Honda G300

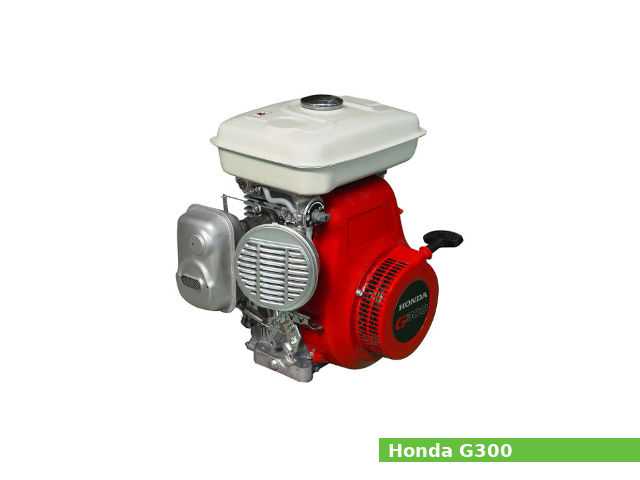

Honda G300The Honda G300 is a 272 cc (16.6 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.

A 76.0 mm (2.99 in) cylinder bore and 60.0 mm (2.36 in) piston stroke give the G300 engine a total of 272 cc of displacement. The compression ratio rating is 6.5:1.

The Honda G300 engine produced 7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm of maximum output power and 15.0 N·m (1.5 kg·m, 11.1 ft·lb) of peak torque.

The Honda G300 features:

  • L-head design
  • Transistorized magneto or contact point breaker (CDI) ignition system
  • Horizontal type carburetor with butterfly valve
  • Centrifugal govervor
  • Splash lubrication system
  • Forced air cooling system
  • Recoil or electric starter

General information

Engine Specifications
Engine modelG300
Engine type4-stroke, L-head, single-cylinder
Displacement272 cm3, (16.6 cu·in)
Max. horsepower7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm
Max. torque Crankshaft PTO: 15.0 N·m (1.5 kg·m, 11.1 ft·lb)
Camshaft PTO: 29.0 N·m (3.0 kg·m, 12.7 ft·lb)
1/2 reduction: 29.0 N·m (3.0 kg·m, 12.7 ft·lb)
1/6 reduction: 88.0 N·m (9.0 kg·m, 65.1 ft·lb)
Cooling systemForced air
Air cleaner Semi-dry type
Dry type
Oil bath type
Lubricating systemSplash type
Ignition systemTransistorized magneto or contact point breaker (CDI)
Fuel systemHorizontal type carburetor with butterfly valve
Fuel consumption285 g/HPh
Fuel tank capacity6.0 L (1.59 US. gal. 1.32 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil or electric starter
Stoping systemIgnition primary circuit ground
GovernorCentrifugal govervor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)
Dry weight

Cylinder Block and Head

Cylinder block
Compression ratio:6.5:1
Cylinder bore:76.0 mm (2.99 in)
Piston stroke:60.0 mm (2.36 in)
Cylinder internal diameter (standard):76.000-76.017 mm (2.9921-2.9928 in)
Piston skirt outer diameter (standard):75.970-76.000 mm (2.9909-2.9921 in)
Number of piston rings (compression / oil):2/1
Connecting rod small end diameter (standard):16.005-16.020 mm (0.6301-0.6307 in)
Side clearance (Top):0.020-0.060 mm (0.0008-0.0024 in)
Side clearance (Second):0.010-0.050 mm (0.0004-0.002 in)
Side clearance (Oil):0.010-0.050 mm (0.0004-0.002 in)
Ring end gap (Top):0.200-0.400 mm (0.0079-0.0157 in)
Ring end gap (Second):0.200-0.400 mm (0.0079-0.0157 in)
Ring end gap (Oil):0.200-0.400 mm (0.0079-0.0157 in)
Ring width (Top):1.970-1.990 mm (0.0776-0.0783 in)
Ring width (Second):1.970-1.990 mm (0.0776-0.0783 in)
Ring width (Oil):3.970-3.990 mm (0.1563-0.1571 in)
Crankpin journal diameter:29.943-29.959 mm (1.1789-1.1795 in)
Cylinder head
Valve arrangement:L-head
Valves:2
Valve steam diameter (INTAKE):6.955-6.970 mm (0.2738-0.2744 in)
Valve steam diameter (EXHAUST):6.910-6.925 mm (0.272-0.2726 in)
Valve spring free length (INTAKE):42.7 mm (1.6811 in)
Valve spring free length (EXHAUST):42.7 mm (1.6811 in)
Camshaft lobe height (INTAKE):38.460-38.720 mm (1.5142-1.5244 in)
Camshaft lobe height (EXHAUST):38.460-38.720 mm (1.5142-1.5244 in)

Tightening torque

Tightening torque specs
Fuel valve (12 mm)12-15 Nm; 1.2-1.5 kg·m; 8.7-10.8 ft·lb
Flywheel (16 mm)110-120 Nm; 11.0-12.0 kg·m; 80-87 ft·lb
Cylinder head24-26 Nm; 2.4-2.6 kg·m; 17-19 ft·lb
Tappet cover (6 mm)8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb
Crankcase cover (8 mm)20-24 Nm; 2.0-2.4 kg·m; 15-17 ft·lb
Connecting rod12.6-15.4 Nm; 1.26-1.54 kg·m; 9.1-11 ft·lb
Fuel tank (8 mm)20-28 Nm; 2.0-2.8 kg·m; 15-20 ft·lb
Oil drain plug15-25 Nm; 1.5-2.5 kg·m; 11-18 ft·lb
Others
5 mm bolts, nuts4-7 Nm; 0.4-0.7 kg·m; 2.9-5.1 ft·lb
6 mm bolts, nuts8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb
8 mm bolts, nuts20-28 Nm; 2.0-2.8 kg·m; 14.5-20.3 ft·lb
10 mm bolts, nuts35-40 Nm; 3.5-4.0 kg·m; 25-29 ft·lb

Service Data

Idle speed:1,400±150 rpm
Cylinder compression:5.3 kg/cm2 (75 psi)
Valve clearance
Intake valve clearance:0.08-0.16 mm (0.0031-0.0063 in)
Exhaust valve clearance:0.11-0.19 mm (0.0043-0.0075 in)
Oil system
Lubrication system:Splash
Oil type:Honda 4-stroke “SE”
Recommended oil:SAE 10W-40
Oil capacity:1.2 L (1.27 US. qt, 1.06 Imp. qt.)
Reduction device oil capacity: 1/2 reduction: 0.3 L (0.32 US. qt, 0.26 Imp. qt.)
1/6 reduction: 0.15 L (0.16 US. qt, 0.13 Imp. qt.)
Fuel system
Type:Horizontal type carburetor with butterfly valve
Main jet:#88
Float height:8.2 mm (0.3228 in)
Fuel tank capacity6.0 L (1.59 US. gal. 1.32 Imp. gal.)
Ignition system
Type:Transistorized magneto or contact point breaker (CDI)
Ignition timing: Magneto ignition: 20° B.T.D.C.
The CDI type does not require adjustment
Spark plug: Magneto ignition: NGK B4H, BR4HS
CDI ignition: NGK BP4HS-10, BPR4HS-10
Spark plug gap: Magneto ignition: 0.6-0.7 mm (0.0236-0.0276 in)
CDI ignition: 0.9-0.10 mm (0.0350-0.0390 in)

Applications

Manufacturer or BrandModels
Generators
HondaE2500, EB2800 EB3000
