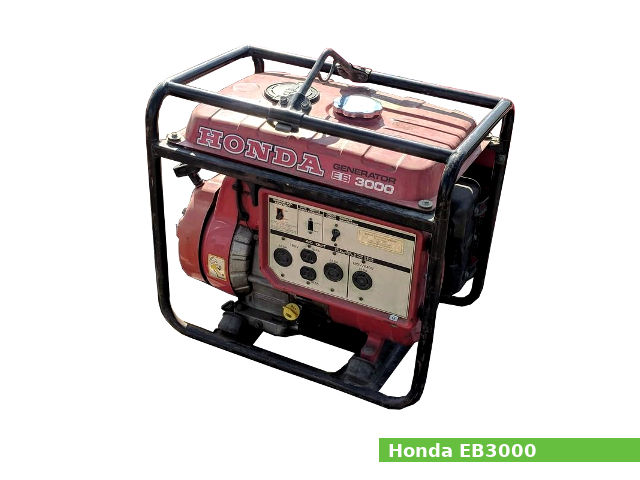

The Honda EB3000 is AC portable generator with 2.8 KVA of rated power, 3.0 KVA of maximum output power and 60 Hz of rated frequency. The EB3000 generator is available with AC 120V/240V rated voltage.
The Honda EB3000 generator used the Honda GE300 single-cylinder gasoline engine with 272 cm3, (16.6 cu·in) of displacement. The engine has a side-valve (L-head) design, a splash-type lubrication system, and a horizontal carburetor with a butterfly valve and flywheel magneto ignition systems. The cylinder bore and the piston stroke are 76.0 mm (3.0 in) and 60.0 mm (2.4 in), respectively. The compression ratio rating is 6.5:1.
The engine produced 7.1 PS (5.22 KW; 7.0 HP) at 3,600 rpm of maximum horsepower and 17.4 Nm (1.77 kg·m; 12.84 ft·lb) of peak torque.
General information
| Generator Specifications | ||
| Model | Honda EB3000 | |
| Dimensions (L x W x H): | 605 x 425 x 620 mm (23.8 x 16.7 x 24.4 in) | |
| Dry weight | 64.5 kg (142.2 lbs) | |
| AC Rated voltage: | 120/240V | |
| AC Rated output: | 2.8 KVA | |
| AC Maximum output: | 3.0 KVA | |
| Rated frequency: | 60 Hz | |
| Rated ampere: | 23.5/12A | |
| Fuel tank capacity | 16.5 liters (4.4 US gal, 3.6 Imp. gal) | |
| Engine | ||
| Model | Honda GE300 (G300) | |
| Displacement | 272 cm3 (16.6 cu-in) | |
| Bore x stroke | 76.0 x 60.0 mm (3.0 x 2.4 in) | |
| Max. horsepower | 7.1 PS (5.22 KW; 7.0 HP) at 3,600 rpm | |
| Rated power | 17.4 Nm (1.77 kg·m; 12.84 ft·lb) | |
| Carburetor | Horizontal type, butterfly valve | |
| Cooling system | Forced-air | |
| Ignition system | Flywheel magneto | |
| Lubricating system | Splash | |
| Stoping system | Ignition primary circuit ground | |
| Fuel used | Unleaded gasoline (octane number 86 or higher) | |
Maintenance data
| Cylinder compression: | 5.3 kg/cm2 (75 psi) |
| Valve clearance | |
| Intake valve clearance: | 0.08-0.16 mm (0.0031-0.0063 in) |
| Exhaust valve clearance: | 0.11-0.19 mm (0.0043-0.0075 in) |
| Oil system | |
| Lubrication system: | Splash |
| Oil type: | Honda 4-stroke “SE” |
| Recommended oil: | SAE 10W-40 |
| Oil capacity: | 1.2 L (1.27 US. qt, 1.06 Imp. qt.) |
| Fuel system | |
| Type: | Horizontal type carburetor with butterfly valve |
| Main jet: | #88 |
| Float height: | 8.2 mm (0.3228 in) |
| Ignition system | |
| Type: | Flywheel magneto |
| Ignition timing: | 20° B.T.D.C. |
| Spark plug: | NGK B4H, BR4HS |
| Spark plug gap: | 0.6-0.7 mm (0.0236-0.0276 in) |
