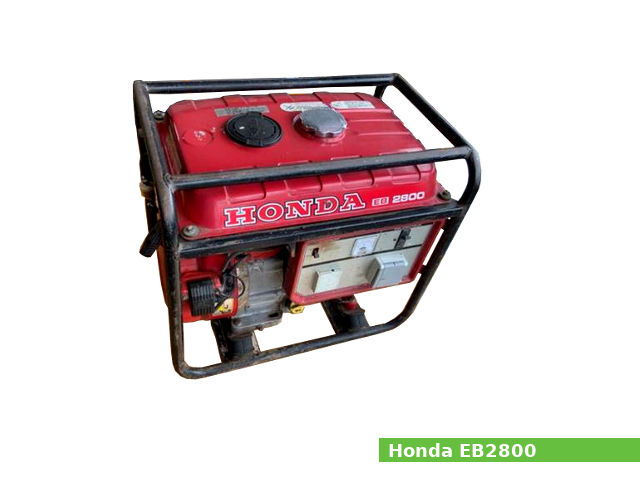

The Honda EB2800 is AC portable generator with 2.5 KVA of rated power, 2.8 KVA of maximum output power and 50 Hz of rated frequency. The EB2800 generator is available with AC 220V, 240V or 120V/240V rated voltage.
The Honda EB2800 generator used the Honda GE300 single-cylinder gasoline engine with 272 cm3, (16.6 cu·in) of displacement. The engine has a side-valve (L-head) design, a splash-type lubrication system, and a horizontal carburetor with a butterfly valve and CDI ignition systems. The cylinder bore and the piston stroke are 76.0 mm (3.0 in) and 60.0 mm (2.4 in), respectively. The compression ratio rating is 6.5:1.
The engine produced 7.1 PS (5.22 KW; 7.0 HP) at 3,600 rpm of maximum horsepower and 17.4 Nm (1.77 kg·m; 12.84 ft·lb) of peak torque.
General information
| Generator Specifications | ||
| Model | Honda EB2800 | |
| Dimensions (L x W x H): | 605 x 425 x 545 mm (23.8 x 16.7 x 21.5 in) | |
| Dry weight | 64.0 kg (141.1 lbs) | |
| AC Rated voltage: |
E,F,FH,G: 220V U: 240V B: 120V/240V |
|
| AC Rated output: |
E,F,FH,G: 2.5 KVA (11.4A) U: 2.5 KVA (10.4A) B: 2.5 KVA (21.0/10.5A) |
|
| AC Maximum output: | 2.8 KVA | |
| Rated frequency: | 50 Hz | |
| Fuel tank capacity | 16.5 liters (4.4 US gal, 3.6 Imp. gal) | |
| Engine | ||
| Model | Honda GE300 (G300) | |
| Displacement | 272 cm3 (16.6 cu-in) | |
| Bore x stroke | 76.0 x 60.0 mm (3.0 x 2.4 in) | |
| Max. horsepower | 7.1 PS (5.22 KW; 7.0 HP) at 3,600 rpm | |
| Rated power | 17.4 Nm (1.77 kg·m; 12.84 ft·lb) | |
| Carburetor | Horizontal type, butterfly valve | |
| Cooling system | Forced-air | |
| Ignition system | CDI | |
| Lubricating system | Splash | |
| Starting system | Recoil starter | |
| Stoping system | Ignition primary circuit ground | |
| Fuel used | Unleaded gasoline (octane number 86 or higher) | |
Maintenance data
| Cylinder compression: | 5.3 kg/cm2 (75 psi) |
| Valve clearance | |
| Intake valve clearance: | 0.08-0.16 mm (0.0031-0.0063 in) |
| Exhaust valve clearance: | 0.11-0.19 mm (0.0043-0.0075 in) |
| Oil system | |
| Lubrication system: | Splash |
| Oil type: | Honda 4-stroke “SE” |
| Recommended oil: | SAE 10W-40 |
| Oil capacity: | 1.2 L (1.27 US. qt, 1.06 Imp. qt.) |
| Fuel system | |
| Type: | Horizontal type carburetor with butterfly valve |
| Main jet: | #88 |
| Float height: | 8.2 mm (0.3228 in) |
| Ignition system | |
| Type: | Contact point breaker (CDI) |
| Ignition timing: | The CDI type does not require adjustment |
| Spark plug: | NGK BP4HS-10, BPR4HS-10 |
| Spark plug gap: | 0.9-0.10 mm (0.0350-0.0390 in) |
