Honda GX200T

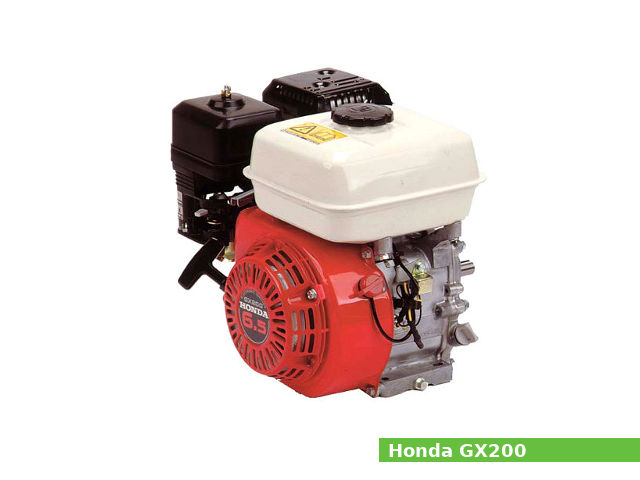

Honda GX200TThe Honda GX200T is a196 cc, (11.96 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.

A 68.0 mm (2.68 in) cylinder bore and 54.0 mm (2.13 in) piston stroke give the GX200T engine a total of 196 cc of displacement. The compression ratio rating is 7.65:1 or 8.5:1.

This engine produced 6.5 PS (4.8 kW; 6.4 HP) at 3,600 rpm of horsepower and 13.2 N·m (1.3 kg·m, 9.7 ft·lb) at 2,500 rpm of torque.

The Honda GX200T features:

  • Overhaed valve (OHV) design
  • Transistorized magneto ignition system
  • Horizontal type carburetor with butterfly valve
  • Centrifugal governor
  • Forced splash lubrication system
  • Forced air cooling system
  • Recoil starter

General information

Engine Specifications
Engine modelGX200T
Engine type4-stroke, OHV, single-cylinder
Displacement196 cm3, (11.96 cu·in)
Max. horsepower Crank P.T.O: 6.5 PS (4.8 kW; 6.4 HP) at 3,600 rpm
With 1/2 reduction: 6.5 PS (4.8 kW; 6.4 HP) at 1,800 rpm
With 1/6 reduction: 6.5 PS (4.8 kW; 6.4 HP) at 600 rpm
Max. torque Crank P.T.O: 13.2 N·m (1.35 kg·m, 9.8 ft·lb) at 2,500 rpm
With 1/2 reduction: 26.5 N·m (2.7 kg·m, 19.5 ft·lb) at 1,250 rpm
With 1/6 reduction: 79.5 N·m (8.1 kg·m, 58.6 ft·lb) at 420 rpm
Cooling systemForced air
Air cleaner Dual silent type,
Semi-dry type,
Oil bath type,
Cyclone type
Lubricating systemForced splash
Ignition systemTransistorized magneto ignition
Fuel systemHorizontal type carburetor with butterfly valve
Fuel consumption230 g/PSh
Fuel tank capacity3.6 L (0.95 US. gal. 0.79 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
GovernorCentrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)
Dry weight

Cylinder Block and Head

Cylinder block
Compression ratio:7.65:1 or 8.5:1
Cylinder bore:68.0 mm (2.68 in)
Piston stroke:54.0 mm (2.13 in)
Cylinder internal diameter (standard):68.000 mm (2.6772 in)
Piston skirt outer diameter (standard):67.985 mm (2.6766 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):30.020 mm (1.1819 in)
Connecting rod small end diameter (standard):18.002 mm (0.7087 in)
Piston pin diameter:18.000 mm (0.7087 in)
Side clearance (Top):0.015-0.045 mm (0.0006-0.0018 in)
Side clearance (Second):0.015-0.045 mm (0.0006-0.0018 in)
Ring end gap (Top):0.250-0.400 mm (0.0098-0.0157 in)
Ring end gap (Second):0.250-0.400 mm (0.0098-0.0157 in)
Ring width (Top):1.5 mm (0.0591 in)
Ring width (Second):1.5 mm (0.0591 in)
Crankpin journal diameter:29.980 mm (1.1803 in)
Crankshaft center distance:27 mm (1.065 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valves:2
Valve steam diameter (INTAKE):5.480 mm (0.2157 in)
Valve steam diameter (EXHAUST):5.440 mm (0.2142 in)
Valve spring free length (INTAKE):30.5 mm (1.2008 in)
Valve spring free length (EXHAUST):30.5 mm (1.2008 in)
Camshaft lobe height (INTAKE):27.700 mm (1.0905 in)
Camshaft lobe height (EXHAUST):27.750 mm (1.0925 in)
Camshaft journal diameter :13.984 mm (0.5506 in)

Tightening torque specs

Tightening torque specs
Connecting rod bolt12 Nm; 1.2 kg·m; 9 ft·lb
Cylinder head bolt24 Nm; 2.4 kg·m; 17 ft·lb
Flywheel nut75 Nm; 7.5 kg·m; 54 ft·lb
Rocker arm pivot lock nut10 Nm; 1.0 kg·m; 7 ft·lb
Rocker arm pivot bolt24 Nm; 2.4 kg·m; 17 ft·lb
Crankcase cover bolt12 Nm; 1.2 kg·m; 9 ft·lb
Oil level switch joint nut10 Nm; 1.0 kg·m; 7 ft·lb
Oil drain bolt18 Nm; 1.8 kg·m; 13 ft·lb
Standard torque values
Bolt, nut (5 mm)5.5 Nm; 0.55 kg·m; 4.0 ft·lb
Bolt, nut (6 mm)10 Nm; 1.0 kg·m; 7 ft·lb
Bolt, nut (8 mm)24 Nm; 2.4 kg·m; 17 ft·lb
Bolt, nut (10 mm)37.5 Nm; 3.75 kg·m; 27 ft·lb
Bolt, nut (12 mm)55 Nm; 5.5 kg·m; 40 ft·lb

Service Data

Engine
Maximum speed:3,600-4,000 rpm
Idle speed:1,250-1,550 rpm
Cylinder compression:3.6 kg/cm2 (353 kPa; 51 psi) at 600 rpm
Valve clearance
Intake valve clearance:0.15±0.02 mm (0.006±0.001 in)
Exhaust valve clearance:0.20±0.02 mm (0.008±0.001 in)
Oil system
Lubrication system:Forced splash
Oil type:Honda 4-stroke or an equivalent (SE or SF)
Recommended oil:SAE 10W-30, 10W-40
Oil capacity:0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Fuel system
Type:Horizontal type carburetor with butterfly valve
Main jet: Externally-vent carb with dual-element silent air cleaner: #72
Externally-vent carb with oil bath or semi-dry air cleaner: #75
Internally-vent carb with dual-element silent air cleaner: #78
Internally-vent carb with cyclone air cleaner: #75
Float height:13.7 mm (0.5394 in)
Pilot screw opening: Ext-vent carb with dual-element silent air cleaner: 2 turns out
Ext-vent carb with oil bath or semi-dry air cleaner: 2-1/4 turns out
Int-vent carb with dual-element silent air cleaner: 2-1/4 turns out
Int-vent carb with cyclone air cleaner: 2-1/4 turns out
Ignition system
Type:Transistorized magneto ignition
Ignition timing:20° B.T.D.C. (Fixed)
Spark plug: NGK: BP6ES, BPR6ES
NIPPONDENSO: W20EP-U, W20EPR-U
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:18 N·m (1.8 kg·m, 13.3 ft·lb)
Ignition coil air gap0.2-0.6 mm (0.0079-0.0236 in)

Applications

Manufacturer or BrandModels
Generators
HondaEB3000c, ECM2800
