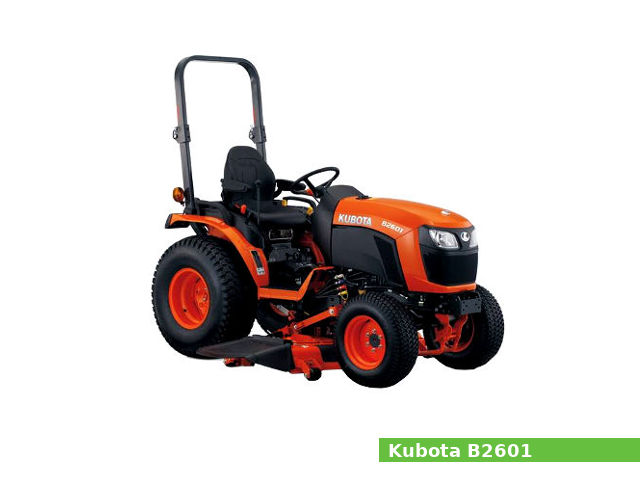

Kubota B2601

Kubota B2601The Kubota B2601 is a compact utility tractor model from the B-01 series, manufactured from 2018 by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota B2601 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke, and a hydrostatic transmission with infinite (3-range) forward and reverse=p gears.

The Kubota B2601 utility tractor features:

  • The Kubota D1105-E4-D32 diesel engine which produces 25.8 PS (19.0 kW; 25.5 HP) at 2,800 rpm of horsepower
  • Hydraulic type power steering
  • Wet disk type brakes
  • Open operator station with two-post ROPS
  • Category I rear hitch with 820 kg (1,810 lbs) of maximum lift capacity
  • Independent middle PTO with 2,500 rpm
  • Independent rear PTO with 540 rpm

General specifications

General Specifications
Model Kubota B2601
Tractor type Compact utility tractor
Production years 2018-
Factory
Dimensions and weight
Length 2,410 mm (94.9 in)
Width 1,245 mm (49 in)
Height 2,160 mm (85 in)
Wheel base 1,560 mm (61.4 in)
Ground clearance 305 mm (12 in)
Weight 740 kg (1,631 lbs)
Fuel capacity
Fuel tank capacity 23,0 liters (6.1 US gal.; 5.1 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1105-E4-D32
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.1 L, 1,123 cm3, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Max. horsepower 25.8 PS (19.0 kW; 25.5 HP) at 2,800 rpm
Max. torque 71.0 N·m (7.2 kg·m, 52.3 ft·lb)
Cooling system Liquid-cooled
Coolant capacity: 3.8 L (4 US. qt, 3.3 Imp. qt.)
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil capacity: 3.1 L (3.3 US. qt, 2.7 Imp. qt.)
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×4 MFWD 4WD
Steering type Hydraulic type power
Brakes Wet disk type
Final drive Spur gear
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse=p
Speed Forward: 20.4 kmh (12.7 mph)
Reverse: 15.3 kmh (9.5 mph)
Transmission oil capacity 15.0 L (4 US. gal, 3.3 Imp. gal.)

Tires

Tires
Front tires Ag: 7-12
Rear tires Ag: 11.2-16

Rear Hitch

Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 820 kg (1,810 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO type Independent
Middle PTO speed 2,500 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V, CCA: 430A

Hydraulic system

Hydraulic system
Hydraulic type Open center
Hydraulic capacity 15.0 L (4 US. gal, 3.3 Imp. gal.)
Pump flow 8.3 gpm (31.4 lpm)

Attachments

Kubota RCK54-32: 54″ mid-mount mower deck with 3-blade
Cutting width 1,370 mm (54 in)
Weight 136 kg (300 lb)
Cut height 20-100 mm (1 to 4 in)
Kubota RCK60-32: 60″ mid-mount mower deck with 3-blade
Cutting width 1,520 mm (60 in)
Weight 146 kg (322 lb)
Cut height 20-100 mm (10 to 4 in)
Kubota LA434 loader
Height (to pin): 1,990 mm (78.5 in)
Clearance, dumped bucket: 1,560 mm (61.7 in)
Dump angle: 40°
Rollback angle: 25°
Breakout force (at pin): 973 kg (2,150 lbs)
Lift to full height (at pin): 430 kg (950 lbs)
Kubota LA435 loader
Loader weight: 94 kg (208 lbs)
Height (to pin): 1,990 mm (78.5 in)
Clearance, dumped bucket: 1,560 mm (61.7 in)
Dump angle: 40°
Rollback angle: 25°
Breakout force (lift): 973 kg (2,146 lbs)
Lift to full height (at pin): 430 kg (948 lbs)
Bucket width: 1,370 mm (54.0 in)
1,520 mm (60.0 in)
Kubota BH70 backhoe
Transport height: 1,850 mm (73.1 in)
2-Foot flat digging depth: 2,160 mm (85.2 in)
Reach from pivot: 2,960 mm (116.8 in)
Loading height: 1,560 mm (61.6 in)
