Kubota B2620

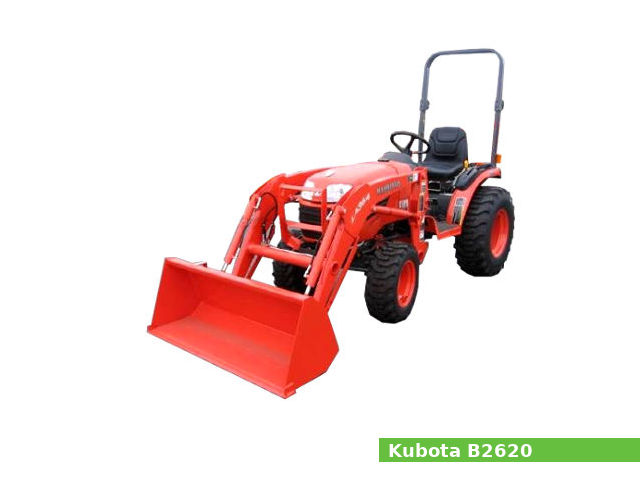

Kubota B2620The Kubota B2620 is a compact utility tractor model from the B2x20 series, manufactured from 2008 to 2015 by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota B2620 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke, and a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota B2620 compact utility tractor features:

  • The Kubota D1105 diesel engine which produces 24.6 PS (18.1 kW; 24.3 HP) at 2,800 rpm of horsepower
  • Integral type power steering
  • Wet disc type brakes
  • Open operator station with two-post ROPS
  • Category I rear hitch with 615 kg (1356 lbs) of maximum lift capacity
  • Optional middle PTO with 2,500 rpm
  • Live rear PTO with 540/960 rpm

General specifications

General Specifications
Model Kubota B2620
Tractor type Compact utility tractor
Production years 2008-2015
Factory
Dimensions and weight
Length 2,415 mm (95.1 in)
Width 1,245 mm (49 in)
Height 2,160 mm (85 in)
Wheel base 1,563 mm (61.5 in)
Weight 705 kg (1,554 lbs)
Fuel capacity
Fuel tank capacity 26.0 liters (6.9 US gal.; 5.7 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1105
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.1 L, 1,123 cm3, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Max. horsepower 24.6 PS (18.1 kW; 24.3 HP) at 2,800 rpm
Cooling system Liquid-cooled
Coolant capacity: 3.9 L (4.1 US. qt, 3.4 Imp. qt.)
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil capacity: 3.1 L (3.3 US. qt, 2.7 Imp. qt.)
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×4 MFWD 4WD
Steering type Integral type power
Brakes Wet disc type
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 20.2 kmh (12.6 mph)
Reverse: 16.1 kmh (10 mph)
Transmission oil capacity 15.0 L (4 US. gal, 3.3 Imp. gal.)

Tires

Tires
Front tires Ag: 7-12
Rear tires Ag: 11.2-16

Rear Hitch

Three-Point Hitch
Category I
Control type Quarter inching valve
Lift capacity (at ends) 615 kg (1,355 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO type Optional
Middle PTO speed 2,500 rpm
Rear PTO type Live
Rear PTO speed 540/960 rpm

Electrical system

Electrical system
Ground Negative
Charging system Alternator
Charging amps 14.5A
Battery 12V, CCA: 430A

Hydraulic system

Hydraulic system
Hydraulic type Open center
Hydraulic capacity 15.0 L (4 US. gal, 3.3 Imp. gal.)
Valves 1 to 2
Pump flow 4.7 gpm (17.8 lpm)
Steering flow 3.6 gpm (13.6 lpm)
Total flow 8.3 gpm (31.4 lpm)

Attachments

Kubota RCK54: 54″ mid-mount mower deck with 3-blade
Cutting width 1,370 mm (54 in)
Weight 136 kg (300 lb)
Cut height 20-100 mm (1 to 4 in)
Kubota RCK60: 60″ mid-mount mower deck with 3-blade
Cutting width 1,520 mm (60 in)
Cut height 20-100 mm (1 to 4 in)
Kubota LA364 loader
Height (to pin): 1,990 mm (78.6 in)
Clearance, dumped bucket: 1,540 mm (60.9 in)
Dump reach: 570 mm (22.7 in)
Dump angle: 40°
Rollback angle: 25°
Breakout force (at pin): 972 kg (2,144 lbs)
Lift to full height (at pin): 431 kg (952 lbs)
Bucket width: 1,270 mm (50.0 in)
Raise time to height: 3.7 s
Bucket dump time: 1.9 s
Lowering time: 2.7 s
Rollback time: 2.6 s
Kubota BH65 backhoe
Digging depth: 2,030 mm (80.1 in)
2-Foot flat digging depth: 2,000 mm (78.8 in)
8-Foot flat digging depth: 1,430 mm (56.4 in)
Reach from pivot: 2,760 mm (108.9 in)
Loading height: 1,630 mm (64.5 in)
Bucket force: 1,772 kg (2,585 lbs)
Dipperstick force: 765 kg (1,687 lbs)
