Honda EB12D

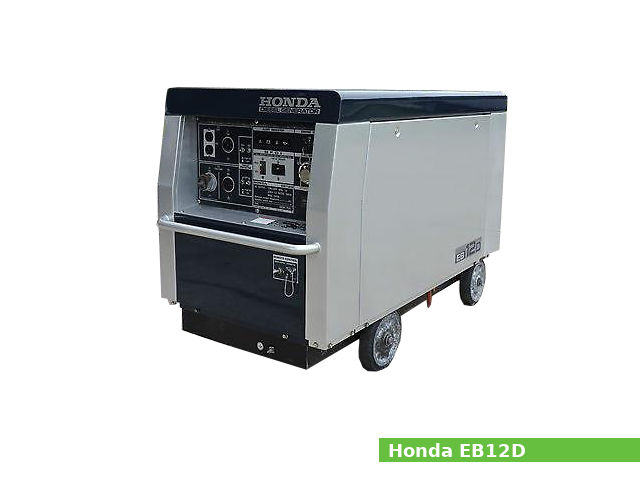

Honda EB12DThe Honda EB12D (Type AG) is AC portable diesel generator with 12 KVA of maximum power, 10 KVA of rated power and 60Hz of rated frequency. The EB12D generator is available with AC 120/240V rated voltage.

The Honda EB12D generator used the Honda GD1100 three-cylinder water-cooled 4-stroke diesel engine with 1.1 L, (65.0 cu·in) of displacement. The engine has a direct injection fuel system. The GD1100 engine’s compression ratio rating is 18.0:1, cylinder bore and piston stroke are 76.0 mm (3.0 in) and 78.0 mm (3.1 in), respectively.

The engine produced 20.0 PS (14.7 KW; 19.7 HP) at 3,600 rpm of maximum horsepower and 55.9 N·m (5.7 kg·m, 41.22 ft·lb) at 2,000 rpm of torque.

General information

Generator Specifications
ModelHonda EB12D
Dimensions (L x W x H):1390 x 630 x 815 mm (54.7 x 24.8 x 32.1 in)
Dry weight340 kg (701.0 lbs)
AC Rated voltage:120/240V
AC Rated output:10 KVA
AC Maximum output:12 KVA
Rated ampere:83.4/41.7 A
Max ampere:100/50 A
Rated frequency:60 Hz
Power factor:Cos Φ=1
Fuel tank capacity38.0 L (10 US gal, 8.4 Imp. gal)
ModelHonda GD1100
Displacement1.1 L (65.0 cu-in)
Bore x stroke76.0 x 78.0 mm (3.0 x 3.1 in)
Max. horsepower20.0 PS (14.7 KW; 19.7 HP) at 3,600 rpm
Max. torque55.9 N·m (5.7 kg·m, 41.22 ft·lb) at 2,000 rpm
Fuel systemDirect injection
Cooling systemWater-cooled
Lubricating systemForced oil by trochoid pump
Fuel usedDiesel fuel

Maintenance data

Idle speed:800 rpm
Cylinder compression:27.0 kg/cm2 (384 psi) at 200 rpm
Valve clearance
Intake valve clearance:0.18-0.22 mm (0.0071-0.0087 in)
Exhaust valve clearance:0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Lubrication system:Forced oil by trochoid pump
Oil type:Diesel oil (API CC or CD)
Recommended oil:SAE 10W-30
Oil capacity:4.8 l (5.07 US. qt, 4.22 Imp. qt.)
Oil pressure:4.0 kg/cm2 (57 psi) at 800 rpm
Fuel system
Type:Direct injection
Injection timing:B.T.D.C 15°
