Honda EM1800X

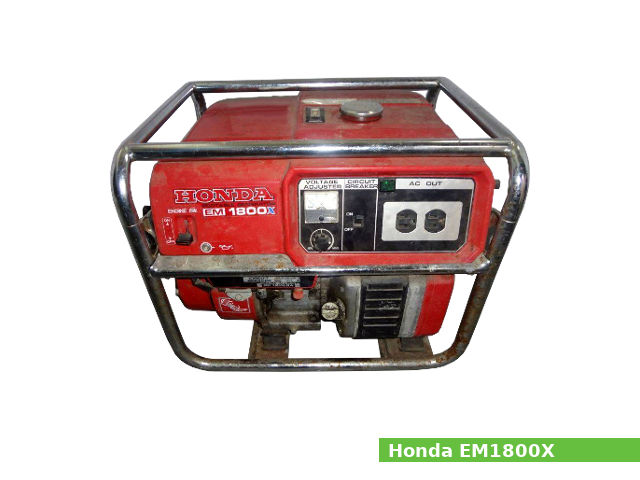

Honda EM1800XThe Honda EM1800X is AC/DC portable generator with 1.8 KVA of maximum power, 1.5 KVA of rated power and 60Hz of rated frequency. The EM1800X generator is available with AC 120V and DC 12V rated voltage. The direct current terminals can be used for charging 12-volt automotive-type batteries only up to 8.3A.

The Honda EM1800X generator with serian number 1004094 – 9999999 is equipped with the GX160 K1 single-cylinder gasoline engine with 163 cm3, (9.9 cu·in) of displacement. The engine has an OHV (overhead valve) design, horizontal carburetor with butterfly valve, and transistorized magneto ignition system. The GX160 K1 engine’s compression ratio rating is 8.5:1, cylinder bore and piston stroke are 68.0 mm (2.7 in) and 45.0 mm (1.8 in), respectively.

The engine produced 6.0 PS (4.4 KW; 6.0 HP) at 4,000 rpm of maximum horsepower and 11 N·m (1.1 kg·m, 8.0 ft·lb) at 2,500 rpm of torque.

The Honda EM1800X generator with serial number 1000001 – 1004093 uses the Honda GX140 engine. The cylinder bore is 64.0 mm (2.52 in) and the piston stroke is 45.0 mm (1.77 in). The compression ratio rating is 8.7:1.

The Honda GX140 engine produced 5.0 PS (3.6 kW; 4.8 HP) at 4,000 rpm of maximum output power and 9.8 N·m (1 kg·m, 7.2 ft·lb) at 2,800 rpm of peak torque.

General information

Generator Specifications
ModelHonda EM1800X
Dimensions (L x W x H):505 x 410 x 415 mm (19.9 x 16.1 x 16.3 in)
Dry weight41.5 kg (91.5 lbs)
AC Rated voltage:120V
AC Rated output:1.5 KVA
AC Rated ampere:12.5 A
AC Maximum output:1.8 KVA
Rated frequency:60 Hz
DC output:Only for charging automotive battery of 12V up to 8.3A
Fuel tank capacity11.0 liters (2.9 US gal, 2.4 Imp. gal)
Engine GX160
ModelHonda GX160 K1
Displacement163 cm3 (9.9 cu-in)
Bore x stroke68.0 x 48.0 mm (2.7 x 1.8 in)
Max. horsepower6.0 PS (4.4 KW; 6.0 HP) at 4,000 rpm
Max. torque11 N·m (1.1 kg·m, 8.0 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemFlywheel magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
Engine GX140
ModelHonda GX140
Displacement144 cm3 (8.8 cu-in)
Bore x stroke64.0 x 45.0 mm (2.5 x 1.77 in)
Max. horsepower5.0 PS (3.6 kW; 4.8 HP) at 4,000 rpm
Max. torque9.8 N·m (1 kg·m, 7.2 ft·lb) at 2,800 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemFlywheel magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Honda GX160 maintenance data

Engine
Cylinder compression:6.0-8.5 kg/cm2 (85-121 psi) at 600 rpm
Valve clearance
Intake valve clearance:0.13-0.17 mm (0.0051-0.0067 in)
Exhaust valve clearance:0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Lubrication system:Splash type
Oil type:SAE 10W-30
Recommended oil:API SG, SF/CC, CD
Oil capacity:0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Fuel system
Type:Horizontal carburetor with butterfly valve
Float height:13.7 mm (0.5394 in)
Ignition system
Type:Transistorized magneto ignition
Ignition timing:25° B.T.D.C. (Fixed)
Spark plug: NGK: BP6ES, BPR6ES
NIPPONDENSO: W20EP-U, W20EPR-U
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:18 N·m (1.8 kg·m, 13.3 ft·lb)
Ignition coil air gap0.2-0.6 mm (0.0079-0.0240 in)

Honda GX140 maintenance data

Engine
Cylinder compression6.0-8.5 kg/cm2 (85-151 psi) at 600 rpm
Carburetor
TypeHorizontal type, butterfly valve
Main jet#68
Float height13.7±1.5 mm (0.54±0.06 in)
Pilot screw opening1 turns out
Oil system
Lubricating systemSplash type
Oil typeHonda 4-stroke or an equivalent (SE or SF)
Recommended oilSAE 10W-30
Oil capacity0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Ignition system
Ignition timingB.T.D.C. 25° / 1,400 rpm
TypeTransistorized magneto ignition
Spark plugNGK: BPR6ES
NIPPONDENSO: W20EPR-U
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Ignition coil air gap0.2-0.6 mm (0.01-0.02 in)
