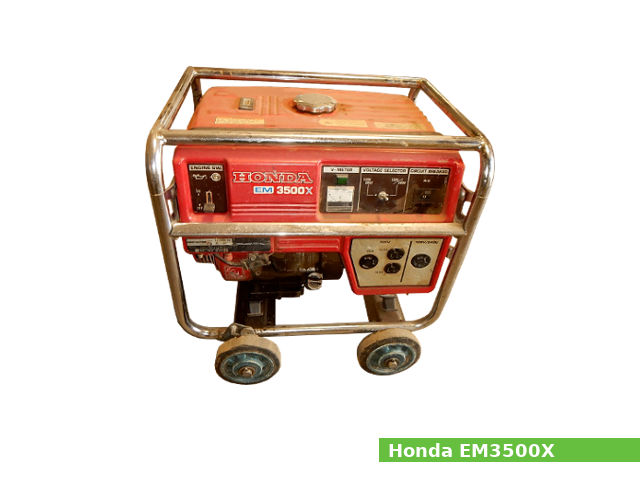

Honda EM3500XThe Honda EM3500X is AC/DC portable generator with 3.5 KVA of maximum power, 3.0 KVA of rated power and 60Hz of rated frequency. The EM3500X generator is available with AC 120/240V rated voltage and DC 12V rated voltage. The direct current terminals can be used for charging 12-volt automotive-type batteries only up to 8.3 A.

The Honda EM3500X generator uses a single-cylinder Honda GX240 gasoline engine 242 cc (14.8 The engine has an overhead valve (OHV) design. The GX240 uses a horizontal carburetor with a butterfly valve and transistorized magneto ignition. The cylinder bore and the piston stroke are 73.0 mm (2.9 in) and 58.0 mm (2.3 in), respectively. The compression ratio rating is 8.2:1.

The GX240 produced 8.2 PS (6.0 KW; 8.0 HP) at 3,600 rpm of maximum horsepower and torque was 17.0 Nm (1.7 kg·m, 12 ft·lb) at 2,500 rpm.

General information

Generator Specifications
ModelHonda EM3500X
Dimensions (L x W x H):605 x 495 x 485 mm (23.8 x 19.5 x 19.1 in)
Dry weight62.0 kg (136.7 lbs)
AC Rated voltage:120/240V
AC Rated output:3.0 KVA
AC Maximum output:3.5 KVA
AC Rated ampere:25/12.5A
Rated frequency:60 Hz
DC output:Only for charging automotive battery of 12V up to 8.3A
Fuel tank capacity17.0 liters (4.5 US gal, 3.7 Imp. gal))
Engine modelHonda GX240
Displacement242 cm3 (14.8 cu-in)
Bore x stroke73.0 x 58.0 mm (2.9 x 2.3 in)
Max. horsepower8.0 HP (6.0 kW) at 3,600 rpm
Max. torque17.0 Nm (1.7 kg·m, 12 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemTransistorized magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Maintenance data

Cylinder compression6.0-8.5 kg/cm2 (85-151 psi) at 600 rpm
Valve clearance
Intake valve0.15 ± 0.02 (0.006 ± 0.001)
Exhaust valve0.20 ± 0.02 (0.008 ± 0.001)
Float height13.2 mm (0.52 in)
Pilot screw opening2
Oil system
Oil typeHonda 4-stroke or an equivalent (SE or SF)
Recommended oilSAE 10W-40, 10W-30
Oil capacity1.1 L (1.16 US gal, 0.97 lmp qt)
Ignition system
Ignition timing20 ° B.T.D.C (Fixed)
Spark plug NGK: BPR5ES
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Spark plug cap7.5-12.5 kΩ
Primary ignition coil resistance0.8-1.0 kΩ
Secondary ignition coil resistance5.9-7.1 kΩ
Ignition coil air gap0.4 ± 0.2 (0.016 ± 0.008)
