Honda EM2500X

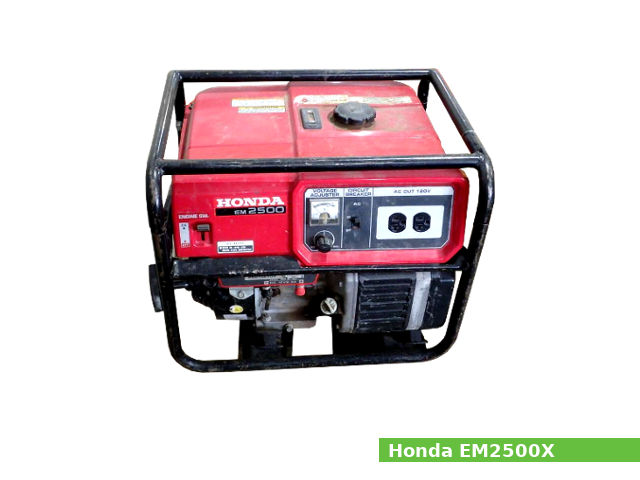

Honda EM2500XThe Honda EM2500X is AC/DC portable generator with 2.5 KVA of maximum power, 2.3 KVA of rated power and 60Hz of rated frequency. The EM2500X generator is available with AC 120V and DC 12V rated voltage. The direct current terminals can be used for charging 12-volt automotive-type batteries only up to 8.3A.

The Honda EM2500X generator is equipped with the GX160 K1 single-cylinder gasoline engine with 163 cm3, (9.9 cu·in) of displacement. The engine has an OHV (overhead valve) design, horizontal carburetor with butterfly valve, and transistorized magneto ignition system. The GX160 K1 engine’s compression ratio rating is 8.5:1, cylinder bore and piston stroke are 68.0 mm (2.7 in) and 45.0 mm (1.8 in), respectively.

The engine produced 6.0 PS (4.4 KW; 6.0 HP) at 4,000 rpm of maximum horsepower and 11 N·m (1.1 kg·m, 8.0 ft·lb) at 2,500 rpm of torque.

General information

Generator Specifications
ModelHonda EM2500X
Dimensions (L x W x H):505 x 420 x 420 mm (19.9 x 16.5 x 16.5 in)
Dry weight44.5 kg (98.1 lbs)
AC Rated voltage:120V
AC Rated output:2.3 KVA
AC Rated ampere:19.2A
AC Maximum output:2.5 KVA
Rated frequency:60 Hz
DC output:Only for charging automotive battery of 12V up to 8.3A
Fuel tank capacity11.0 liters (2.9 US gal, 2.4 Imp. gal)
Engine
ModelHonda GX160 K1
Displacement163 cm3 (9.9 cu-in)
Bore x stroke68.0 x 48.0 mm (2.7 x 1.8 in)
Max. horsepower6.0 PS (4.4 KW; 6.0 HP) at 4,000 rpm
Max. torque11 N·m (1.1 kg·m, 8.0 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemFlywheel magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Maintenance data

Engine
Cylinder compression:6.0-8.5 kg/cm2 (85-121 psi) at 600 rpm
Valve clearance
Intake valve clearance:0.13-0.17 mm (0.0051-0.0067 in)
Exhaust valve clearance:0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Lubrication system:Splash type
Oil type:SAE 10W-30
Recommended oil:API SG, SF/CC, CD
Oil capacity:0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Fuel system
Type:Horizontal carburetor with butterfly valve
Float height:13.7 mm (0.5394 in)
Ignition system
Type:Transistorized magneto ignition
Ignition timing:25° B.T.D.C. (Fixed)
Spark plug: NGK: BP6ES, BPR6ES
NIPPONDENSO: W20EP-U, W20EPR-U
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:18 N·m (1.8 kg·m, 13.3 ft·lb)
Ignition coil air gap0.2-0.6 mm (0.0079-0.0240 in)
