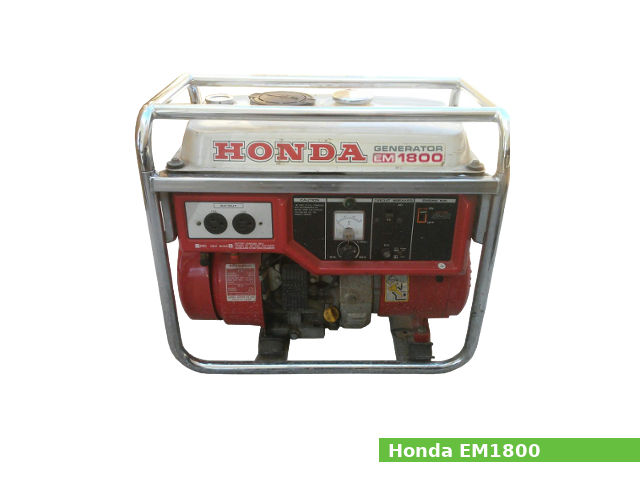

Honda EM1800

Honda EM1800The Honda EM1800 is AC/DC portable generator with 1.8 KVA of maximum power, 1.5 KVA of rated power and 60Hz of rated frequency. The EM1800 generator is available with AC 120V and DC 12V rated voltage. The direct current terminals can be used for charging 12-volt automotive-type batteries only up to 8.3A.

The Honda EM1800 generator uses the GE200 single-cylinder gasoline engine with 197 cm3, (12.0 cu·in) of displacement. The engine has a side-valve (L-head) design, horizontal carburetor with butterfly valve, and CDI ignition system. The G200 engine’s compression ratio rating is 6.5:1, cylinder bore and piston stroke are 67.0 mm (2.64 in) and 56.0 mm (2.20 in), respectively.

The engine produced 5.0 PS (3.7 kW; 5.0 HP) at 3,600 rpm of maximum horsepower.

General information

Generator Specifications
Model Honda EM1800
Dimensions (L x W x H): 545 x 360 x 475 mm (21.5 x 14.2 x 18.7 in)
Dry weight 46.0 kg (101.4 lbs)
AC Rated voltage: 120V
AC Rated output: 1.5 KVA (12.5 A)
AC Maximum output: 1.8 KVA
Rated frequency: 60 Hz
DC output: Only for charging automotive battery of 12V up to 8.3A
Fuel tank capacity 10.0 liters (2.6 US gal, 2.2 Imp. gal)
Engine
Model Honda GE200 (G200)
Displacement 197 cm3 (12.0 cu-in)
Bore x stroke 67.0 x 56.0 mm (2.64 x 2.20 in)
Max. horsepower 5.0 PS (3.7 kW; 5.0 HP) at 3,600 rpm
Max. torque
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system CDI (Capacitor Discharge Ignition)
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Engine
Cylinder compression: 6.0 kg/cm2 (85 psi) at 600 rpm
Valve clearance
Intake valve clearance: 0.08-0.16 mm (0.0031-0.0063 in)
Exhaust valve clearance: 0.16-0.24 mm (0.0063-0.0094 in)
Oil system
Lubrication system: Splash type
Oil type: SAE 10W-30 or 10W-40
Recommended oil: Honda 4-stroke or an equivalent (SE or SF)
Oil capacity: 0.7 L (0.74 US. qt, 0.62 Imp. qt.)
Ignition system
Type: CDI
Spark plug: NGK:BPR-4HS, ND: W14FFR-VL10
Spark plug gap: 0.6-0.7 mm (0.0236-0.0276 in)
Spark plug torque: 20 N·m (2 kg·m, 14.7 ft·lb)
