Honda iGX270

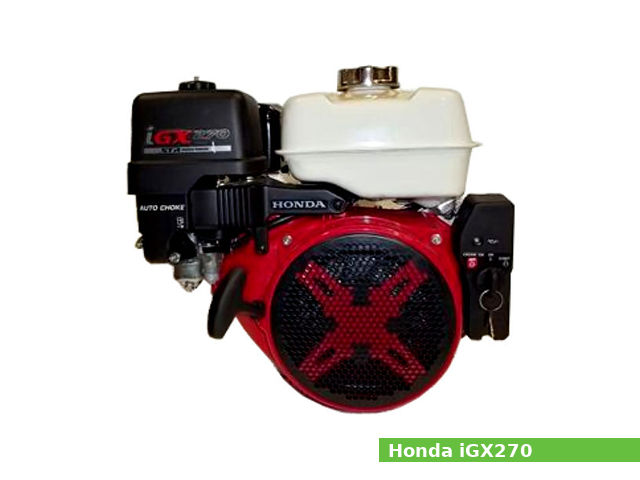

Honda iGX270The Honda iGX270 is a 270 cc, (16.5 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.

A 77.0 mm (3.03 in) cylinder bore and 58.0 mm (2.28 in) piston stroke give the iGX270 engine a total of 270 cc of displacement. The compression ratio rating is 8.5:1.

The iGX270 engine produced 8.6 PS (6.3 kW; 8.4 HP) at 3,600 rpm of net power and 19.1 N·m (1.9 kg·m, 14.1 ft·lb) at 2,500 rpm of maximum torque.

The Honda iGX270 features:

  • OHV design
  • Cast iron cylinder sleeve
  • Ball bearing supported crankshaft
  • Heavy-duty balancer shaft
  • C.D.I.(Capacitor Discharge Ignition)
  • Horizontal type carburetor with butterfly valve
  • ECU (electronic control unit) with a self-tuning regulator (STR) governor system
  • Forced splash lubrication system
  • Forced air cooling system
  • Recoil or recoil and starter motor

General information

Engine Specifications
Engine modeliGX270
Engine type4-stroke, OHV, single-cylinder
Displacement270 cm3, (16.48 cu·in)
Max. horsepower8.6 PS (6.3 kW; 8.4 HP) at 3,600 rpm
Max. torque19.1 N·m (1.9 kg·m, 14.1 ft·lb) at 2,500 rpm
Cooling systemForced air
Air cleanerDual element type
Lubricating systemForced splash
Ignition systemC.D.I.(Capacitor Discharge Ignition)
Fuel systemHorizontal type carburetor with butterfly valve
Fuel consumption2.4 Liters (0.63 US gal, 0.53 Imp gal)/h
Fuel tank capacity5.3 L (1.4 US. gal. 1.17 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil or recoil and starter motor
Stoping systemIgnition exciter coil circuit open
GovernorSelf-tuning regulator (STR) governor system
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)355 x 462 x 422 mm (14.0 x 18.2 x 16.6 in)
Dry weight30.3 kg (66.8 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:8.5:1
Cylinder bore:77.0 mm (3.03 in)
Piston stroke:58.0 mm (2.28 in)
Cylinder internal diameter (standard):77.000-77.017 mm (3.0315-3.0322 in)
Piston skirt outer diameter (standard):76.975-76.985 mm (3.0305-3.0309 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):33.025-33.039 mm (1.3002-1.3007 in)
Connecting rod small end diameter (standard):18.005-18.020 mm (0.7089-0.7094 in)
Piston pin diameter:17.994-18.000 mm (0.7084-0.7087 in)
Side clearance (Top):0.030-0.060 mm (0.0012-0.0024 in)
Side clearance (Second):0.030-0.060 mm (0.0012-0.0024 in)
Ring end gap (Top):0.200-0.350 mm (0.0079-0.0138 in)
Ring end gap (Second):0.350-0.500 mm (0.0138-0.0197 in)
Ring end gap (Oil):0.200-0.700 mm (0.0079-0.0276 in)
Ring width (Top):1.160-1.175 mm (0.0457-0.0463 in)
Ring width (Second):1.160-1.175 mm (0.0457-0.0463 in)
Crankpin journal diameter:32.975-32.985 mm (1.2982-1.2986 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valves:2
Valve steam diameter (INTAKE):6.575-6.590 mm (0.2589-0.2594 in)
Valve steam diameter (EXHAUST):6.535-6.550 mm (0.2573-0.2579 in)
Valve spring free length (INTAKE):39.0 mm (1.5354 in)
Valve spring free length (EXHAUST):39.0 mm (1.5354 in)
Camshaft lobe height (INTAKE):31.945-32.145 mm (1.2577-1.2655 in)
Camshaft lobe height (EXHAUST):31.666-31.866 mm (1.2467-1.2546 in)
Camshaft journal diameter :15.966-15.984 mm (0.6286-0.6293 in)

Tightening torque

Tightening torque specs
Connecting rod bolt (M8x1.25 Special)14 Nm; 1.4 kg·m; 10 ft·lb
Cylinder head bolt (M10x1.25)35 Nm; 3.5 kg·m; 25 ft·lb
Flywheel nut (M16x1.5 Special)115 Nm; 11.5 kg·m; 83 ft·lb
Rocker arm pivot lock nut (M6x0.5)10 Nm; 1.0 kg·m; 7 ft·lb
Rocker arm pivot bolt (M8x1.25 Special)24 Nm; 2.4 kg·m; 17 ft·lb
Crankcase cover bolt (M8x1.25)24 Nm; 2.4 kg·m; 17 ft·lb
Oil level switch joint nut (M10x1.25)10 Nm; 1.0 kg·m; 7 ft·lb
Fuel filter joint nut (M10x1.25)2 Nm; 0.2 kg·m; 1.4 ft·lb
Muffler mounting nut (M8x1.25)24 Nm; 2.4 kg·m; 17 ft·lb
Air cleaner wing nut (M6x1.0)9 Nm; 0.9 kg·m; 6.5 ft·lb
Oil drain bolt (M12x1.5)23 Nm; 2.3 kg·m; 17 ft·lb
Fuel tank bolt (M8x1.25)24 Nm; 2.4 kg·m; 17 ft·lb
Air cleaner mounting nut (M6x1.0)10 Nm; 1.0 kg·m; 7 ft·lb
Fuel strainer cup (M24x1.0)4 Nm; 0.4 kg·m; 2.9 ft·lb
Standard torque values
Bolt, nut (5 mm)5.5 Nm; 0.55 kg·m; 4.0 ft·lb
Bolt, nut (6 mm)10 Nm; 1.0 kg·m; 7 ft·lb
Bolt, nut (8 mm)24 Nm; 2.4 kg·m; 17 ft·lb
Bolt, nut (10 mm)37.5 Nm; 3.75 kg·m; 27 ft·lb
Bolt, nut (12 mm)55 Nm; 5.5 kg·m; 40 ft·lb

Service Data

Engine
Maximum speed:3,600±150 rpm
Idle speed:1,400±150 rpm
Valve clearance
Intake valve clearance:0.15±0.02 mm (0.006±0.001 in)
Exhaust valve clearance:0.20±0.02 mm (0.008±0.001 in)
Oil system
Lubrication system:Forced splash
Oil type:Honda 4-stroke or an equivalent (SE or later)
Recommended oil:SAE 10W-30
Oil capacity:1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Ignition system
Type:C.D.I.(Capacitor Discharge Ignition) type magneto ignition
Ignition timing:B.T.D.C. 10° / 1,400 rpm
Spark plug:NGK: BPR6ES DENSO: W20EPR-U
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:18 N·m (1.8 kg·m, 13.3 ft·lb)
Ignition coil air gap0.2-0.6 mm (0.0079-0.0236 in)

Applications

Manufacturer or BrandModels
Generators
HondaEB4000X AT1
