Honda EB4000X

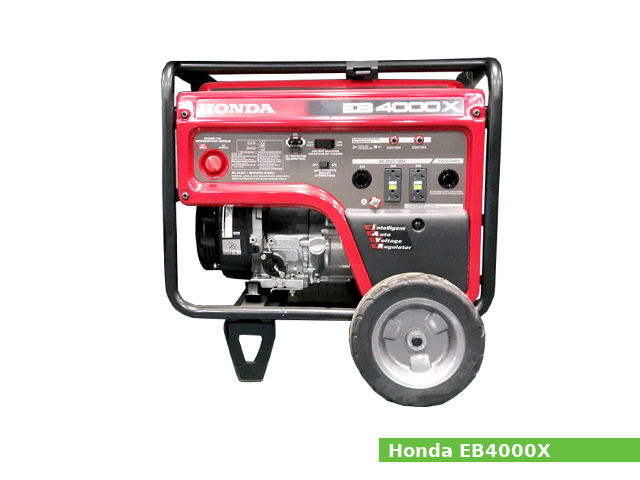

Honda EB4000XThe Honda EB4000X is a single-phase AC portable generator with 4.0 kVA of maximum power and 3.6 kVA of rated power and 60 Hz of rated frequency. The EB4000X generator is available with 120/240 V rated voltage.

The Honda EB4000X AT (s/n 1000001-1006923) generator used single-cylinder (inclined by 25°) the Honda GX270 gasoline engine (270 cc; 16.5 cu.in.). The engine has an overhead valve (OHV) design. The GX270 uses a recoil starter, horizontal carburetor with butterfly valve and C.D.I.(Capacitor Discharge Ignition). Cylinder bore and the piston stroke are 77.0 mm (3.0 in) and 58.0 mm (2.3 in), respectively. Compression ratio rating is 8.2:1.

The GX270 produced 9.1 PS (6.7 kW; 9.0 HP) at 3,600 rpm of maximum horsepower and 19.5 Nm (1.95 kg·m, 14 ft·lb) of torque.

The Honda EB4000X AT1 (s/n 1006924-9999999) generator used the Honda iGX270 engine with the ECU (electronic control unit) and a self-tuning regulator (STR) governor system.

General information

Generator Specifications
Model Honda EB4000X AT/AT1
Dimensions (L x W x H): 1,043 x 706 x 773 mm (41.1 x 27.8 x 30.4 in)
Dry weight 85.4 kg (188.3 lbs)
AC Rated voltage: 120V/240V
AC Rated output: 3.6 kVA
AC Maximum output: 4.0 kVA
Rated frequency: 60 Hz
Rated current: 30/15 A
Fuel tank capacity 23.5 liters (6.2 US gal, 5.2 Imp. gal)
Honda GX270 engine
Engine model Honda GX270
Displacement 270 cm3 (16.5 cu-in)
Bore x stroke 77.0 X 58.0 mm (3.0 x 2.3 in)
Max. horsepower 9.1 PS (6.7 kW; 9.0 HP) at 3,600 rpm
Max. torque 19.5 Nm (1.95 kg·m, 14 ft·lb)
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system C.D.I.(Capacitor Discharge Ignition)
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Honda iGX270 engine
Engine model Honda iGX270
Displacement 270 cm3 (16.5 cu-in)
Bore x stroke 77.0 X 58.0 mm (3.0 x 2.3 in)
Max. horsepower 8.6 PS (6.3 kW; 8.4 HP) at 3,600 rpm
Max. torque 19.1 N·m (1.9 kg·m, 14.1 ft·lb) at 2,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system C.D.I. (Capacitor Discharge Ignition)
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Honda GX270 engine maintenance data

Engine
Maximum speed 3,850 ± 150 rpm
Idle speed 1,400 ± 150 rpm
Cylinder compression 6.0-8.5 kg/cm2 (85-151 psi) at 600 rpm
Valve clearance
Intake valve 0.15 ± 0.02 (0.006 ± 0.001)
Exhaust valve 0.20 ± 0.02 (0.008 ± 0.001)
Carburetor
Float height 13.2 mm (0.52 in)
Pilot screw opening 2
Oil system
Oil type Honda 4-stroke or an equivalent (SG.SF/CC.CD)
Recommended oil SAE 10W-30
Oil capacity 1.1 L (1.16 US gal, 0.97 lmp qt)
Ignition system
Ignition timing 20 ° B.T.D.C (Fixed)
Spark plug NGK: BP6ES, BPR6ES
NIPPONDENSO: W20EP-U, W20EPR-U
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
Spark plug cap 7.5-12.5 kΩ
Primary ignition coil resistance 0.8-1.0 kΩ
Secondary ignition coil resistance 5.9-7.1 kΩ
Ignition coil air gap 0.4 ± 0.2 (0.016 ± 0.008)

Honda iGX270 engine maintenance data

Engine
Maximum speed: 3,600±150 rpm
Idle speed: 1,400±150 rpm
Valve clearance
Intake valve clearance: 0.15±0.02 mm (0.006±0.001 in)
Exhaust valve clearance: 0.20±0.02 mm (0.008±0.001 in)
Oil system
Lubrication system: Forced splash
Oil type: Honda 4-stroke or an equivalent (SE or later)
Recommended oil: SAE 10W-30
Oil capacity: 1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Ignition system
Type: C.D.I.(Capacitor Discharge Ignition)
Ignition timing: B.T.D.C. 10° / 1,400 rpm
Spark plug: NGK: BPR6ES DENSO: W20EPR-U
Spark plug gap: 0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque: 18 N·m (1.8 kg·m, 13.3 ft·lb)
Ignition coil air gap 0.2-0.6 mm (0.0079-0.0236 in)
