Honda F200

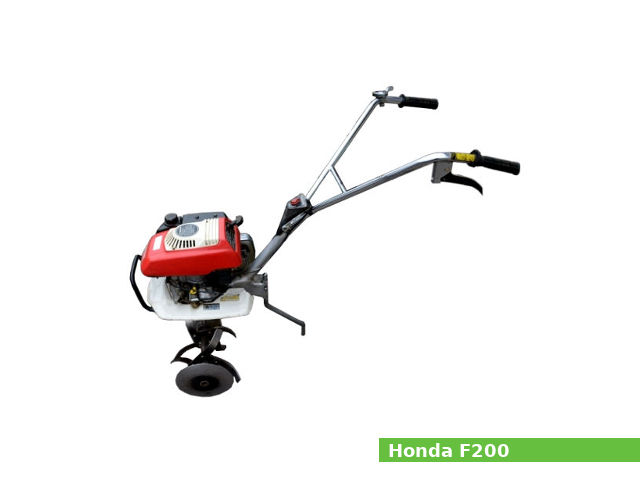

Honda F200 tillerThe Honda F200 tiller is equipped with small general-purpose Honda G100 engine (76 cc, 4.6 cu-in), planetary gear transmission and internal expanding shoe clutch. The engine uses horizontal carburetor with butterfly valve, flywheel magneto ignition system and recoil starter.

The Honda G100 is a single-cylinder air-cooled 4-stroke internal combustion engine with 46.0 mm (1.81 in) cylinder bore and 46.0 mm (1.81 in) piston stroke. Compression ratio rating is 6.5:1.

The engine produced up to 2.0 HP (1.5 kW) at 4,200 rpm of maximum output power and 3.3 Nm (0.33 kg·m, 2.4 ft·lb) at 3,600 rpm of torque.

General information

Tiller, Rotavator, Cultivator Specifications
Model Honda F200
Dimensions (L x W x H): 1,250 x 585 x 960 mm (49.2 x 23.0 x 37.8 in)
Dry weight (without tines) 27.0 kg (59.5 lbs)
Max handle height 1.045 mm (41.1 in)
Fuel tank capacity 0.85 L (1.8 US gal)
Engine
Engine model Honda G100
Displacement 76 cm3 (4.6 cu-in)
Bore x stroke 46.0 x 46.0 mm (1.81 in x 1.81 in)
Max. horsepower 2.0 HP (1.5 kW) at 4,200 rpm
Max. torque 3.3 Nm (0.33 kg·m, 2.4 ft·lb) at 3,600 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Transmission and clutch
Transmission Planetary gear
Clutch Internal expanding shoe

Maintenance data

Engine
Idle speed 1400 ± 110 rpm
Cylinder compression 6.5 kg/cm2 (637 kPa) at 800 rpm
Adjust timing ignition
Ignition timing 20° B.T.D.C. (Fixed)
Adjust valve clearance
Intake valve 0.08-0.16 mm (0.0031-0.0063 in)
Exhaust valve 0.08-0.16 mm (0.0031-0.0063 in)
Oil system
Oil type Honda 4-stroke “SE”
Recommended oil 10W-40
Oil capacity 0.45 L
Transmission oil capacity 0.95 L (2.01 Us pt)
Carburetor
Main jet #55
Pilot screw 1-3/8
Float height 6.7-9.7 mm (0.26-0.28 in)
Ignition system
Spark plug NGK: BM4A, BMR4A
NIPPON DENSO: W14M-U, W14MR-U
Spark plug gap 0.6-0.7 mm (0.024-0.028 in)
Primary winding ignition coil resistance 0.49 Ω±10%
Secondary winding ignition coil resistance 4.0 kΩ±10%
Cabel adjustment
Throttle lever 5-10 mm (0.2-0.4 in)
Clutch lever clearance 45-50 mm (1.77-1.97 in)
