Honda F220

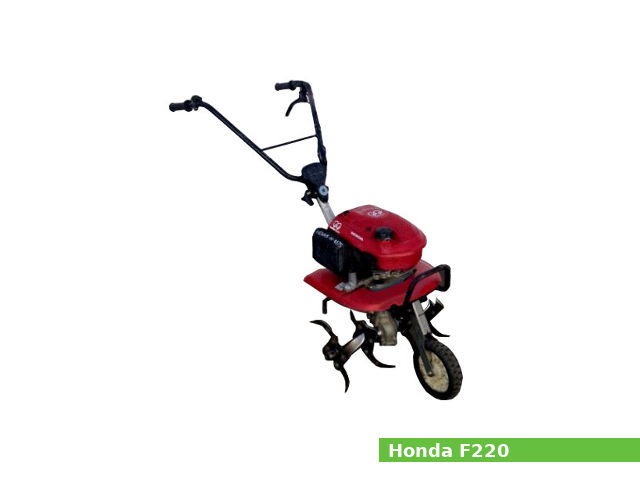

Honda F220 tillerThe Honda F220 tiller is equipped with small general-purpose Honda GXV57 engine (57 cc, 3.48 cu-in), planetary gear transmission and internal expanding shoe clutch. The engine uses transistorized magneto ignition, horizontal type carburetor, and recoil starter.

The Honda GXV57 is a single-cylinder air-cooled 4-stroke internal combustion engine vertical shaft. A 45.0 mm (1.77 in) cylinder bore and 36.0 mm (1.42 in) piston stroke give the motor a total of 57 cc of displacement. Compression ratio rating is 8.0:1.

The GXV57 engine produces 2.0 HP (1.5 kW) at 4,800 rpm and 3.2 N·m (0.33 kg·m, 2.36 ft·lb) at 4,600 rpm of torque .

General information

Tiller, Rotavator, Cultivator Specifications
Model Honda F220
Dimensions (L x W x H): 1,200 x 545 x 975 mm (47.2 x 21.5 x 38.4 in)
Dry weight (without tines) 24.0 kg (53 lbs)
Max handle height
Fuel tank capacity 0.67 L
Engine model Honda GXV57
Displacement 57 cm3 (3.48 cu-in)
Bore x stroke 45.0 x 36.0 mm (1.77 x 1.42 in)
Max. horsepower 2.0 HP (1.5 kW) at 4,800 rpm
Max. torque 3.2 N·m (0.33 kg·m, 2.36 ft·lb) at 4,600 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Transmission and clutch
Transmission Planetary gear
Clutch Internal expanding shoe

Maintenance data

Maximum speed 4,250 ± 150 rpm
Idle speed 2,200 ± 200 rpm
Cylinder compression 2.8 kg/cm2 (39.8 psi) at 1000 rpm
Valve clearance
Intake valve 0.06-0.10 mm (0.0024-0.0039 in)
Exhaust valve 0.09-0.13 mm (0.0035-0.0051 in)
Oil system
Oil type Honda 4-stroke or an equivalent (SE or SF)
Recommended oil SAE 10W-30
Oil capacity 0.30 l (0.32 US. qt)
Transmission oil capacity 0.95 L (1.0 US qt)
Ignition system
Ignition timing 21° B.T.D.C.
Spark plug NGK: CR4HSB
Spark plug gap 0.6-0.7 mm (0.024-0.028 in)
Spark plug tightening torque 12 Nm; 1.2 kg·m; 8.6 ft·lb
Main jet #50
Float height 12 mm (0.47 in)
Pilot screw opening 1-5/8 turns out
