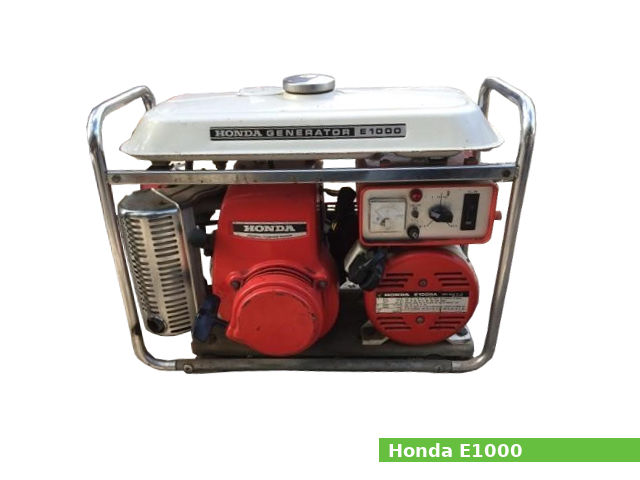

Honda E1000The Honda E1000 is AC/DC single-phase, 2-pole portable generator with 1.0 KVA of rated power and 50/60Hz of rated frequency (depending on model). The E1000 generator is available with AC 120V or 240V (depending on model) and DC 12V rated voltage (E1000T model only).

The Honda E1000 generator used the Honda G40 single-cylinder gasoline engine with 170 cm3, (10.4 cu·in) of displacement. The engine has a side-valve (L-head) design, a wet-sump lubrication system, a and horizontal carburetor with a butterfly valve. The cylinder bore and the piston stroke are 66.0 mm (2.6 in) and 50.0 mm (2.0 in), respectively. The compression ratio rating is 6.5:1.

The engine produced 4.2 PS (3.1 KW; 4.2 HP) at 4,000 rpm of maximum horsepower and 3.3 PS (2.4 KW; 3.2 HP) at 3,600 rpm of rated power.

General information

Generator Specifications
Model Honda E1000
Dimensions (L x W x H): 604 x 345 x 475 mm (23.3 x 13.6 x 18.7 in)
Dry weight 53.0 kg (116.9 lbs)
AC Rated voltage: T,A: 120V;
E,S,U: 240V;
AC Rated output: 1 KVA
AC Maximum output: –
Rated frequency: T,E,U: 50 Hz;
A,S: 60 Hz
DC output: 12V/24V up to 4.2A
Fuel tank capacity 6.0 liters (1.6 US gal, 1.3 Imp. gal)
Engine
Model Honda G40
Displacement 170 cm3 (10.4 cu-in)
Bore x stroke 66.0 x 50.0 mm (2.7 x 2.0 in)
Max. horsepower 4.2 PS (3.1 KW; 4.2 HP) at 4,000 rpm
Rated power 3.3 PS (2.4 KW; 3.2 HP) at 3,600 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Flywheel magneto ignition
Lubricating system Wet sump
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Oil system
Oil type API MS or DG
Recommended oil SAE 30, 20, 20W, 10W
Oil capacity 0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Ignition system
Spark plug NGK: B4H
Spark plug gap 0.7 mm (0.028 in)
