Honda E600

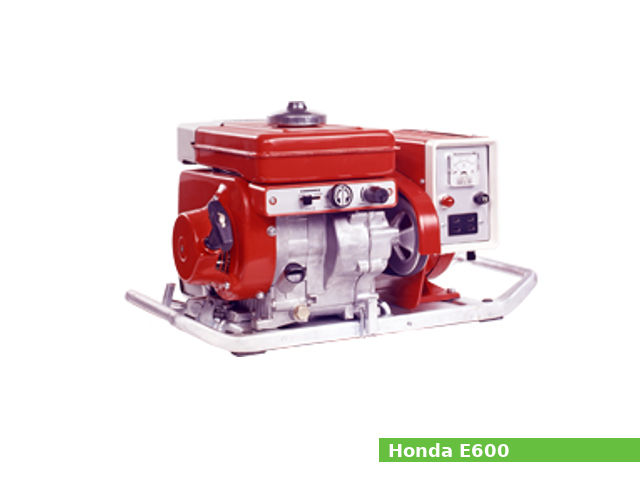

Honda E600The Honda E600 is self-excited, externally-exited, single-phase, 4-pole portable generator with 600 VA of AC output power and 50/60Hz of rated frequency (depending on model). The E600 generator is available with AC 120V, 220V or 240V (depending on model).

The Honda E600 generator used the Honda G25 single-cylinder gasoline engine with 59 cm3, (3.6 cu·in) of displacement. The engine has a side-valve (L-head) design, a plash-type lubrication system, a high voltage ignition system, and a horizontal carburetor with a butterfly valve. The cylinder bore and the piston stroke are 46.0 mm (1.81 in) and 35.6 mm (1.4 in), respectively. The compression ratio rating is 8.6:1.

The engine produced 2.5 PS (1.83 KW; 2.5 HP) at 6,000 rpm of maximum horsepower and 1.8 PS (1.3 KW; 1.7 HP) at 5,000 rpm of rated power.

General information

Generator Specifications
Model Honda E600
Dimensions (L x W x H): 562 x 350 x 303 mm (22.1 x 13.8 x 11.9 in)
Dry weight 30.0 kg (66.2 lbs)
AC Rated voltage: T,A: 120V;
E,S: 220V;
U: 240V;
AC Rated output: T,A: 600 VA (5A)
E,S: 600 VA (2.7A)
U: 600 VA (2.5A)
AC Maximum output:
Rated frequency: T,E,U: 50 Hz;
A,S: 60 Hz
Fuel tank capacity 2.0 liters (0.5 US gal, 0.4 Imp. gal)
Engine
Model Honda G25
Displacement 59 cm3 (3.6 cu-in)
Bore x stroke 46.0 x 35.6 mm (1.81 x 1.40 in)
Max. horsepower 2.5 PS (1.83 KW; 2.5 HP) at 6,000 rpm
Rated power 1.8 PS (1.3 KW; 1.7 HP) at 5,000 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Flywheel magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Oil system
Oil type API MS or DG
Recommended oil SAE 30, 20, 20W, 10W
Oil capacity 0.74 liters (0.78 US.qts, 0.65 Imp. qts)
Ignition system
Spark plug NGK: C-6HB
Spark plug gap 0.7 mm (0.028 in)
