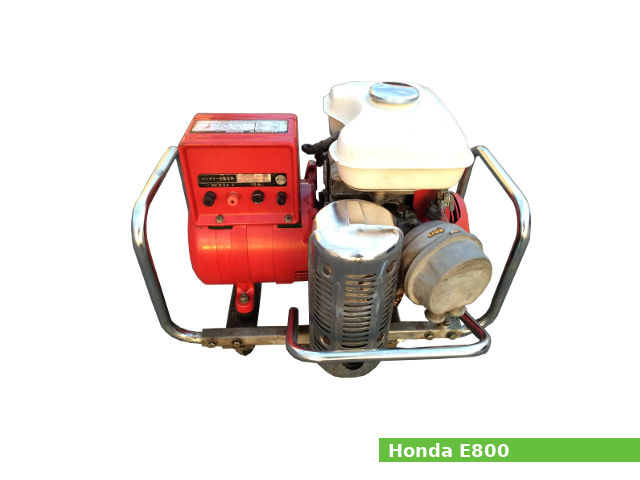

The Honda E800 is AC/DC portable generator with 1.0 KVA of maximum power, 800 VA of rated power and 50/60Hz of rated frequency (depending on model). The E800 generator is available with AC 115V, 220V or 240V (depending on model) and DC 12V rated voltage. The direct current terminals can be used for charging 12-volt automotive-type batteries only up to 8.3A.
The Honda E800 generator uses the G35 single-cylinder gasoline engine with 144 cm3, (8.8 cu·in) of displacement. The engine has a side-valve (L-head) design, flywheel magneto ignition system. The cylinder bore and the piston stroke are 64.0 mm (2.52 in) and 45.0 mm (1.77 in), respectively. The compression ratio rating is 6,4:1.
The engine produced 3.5 PS (2.6 kW; 3.5 HP) at 4,000 rpm of maximum horsepower and 2.8 PS (1.8 KW; 2.5 HP) at 3,600 rpm of rated power.
General information
| Generator Specifications | ||
| Model | Honda E800 | |
| Dimensions (L x W x H): | 595 x 385 x 420 mm (23.4 x 15.2 x 16.5 in) | |
| Dry weight | 33.0 kg (73.0 lbs) | |
| AC Rated voltage: |
T,A: 115V; E,S,G: 220V; U: 240V; |
|
| AC Rated output: |
T,A: 0.8 KVA (7.0 A); E,S,G: 0.8 KVA (3.6 A); U: 0.8 KVA (3.3 A); |
|
| AC Maximum output: | 1.0 KVA | |
| Rated frequency: |
T,E,U,G: 50 Hz; A,S: 60 Hz |
|
| DC output: | Only for charging automotive battery of 12V up to 8.3A | |
| Fuel tank capacity | 2.5 L (0.66 US. gal. 0.55 Imp. gal.) | |
| Engine | ||
| Model | G35 | |
| Displacement | 144 cm3 (8.8 cu-in) | |
| Bore x stroke | 64.0 x 45.0 mm (2.52 x 1.77 in) | |
| Max. horsepower | 3.5 PS (2.61 kW; 3.5 HP) at 4,000 rpm | |
| Max. torque | 6.5 N·m (0.7 kg·m, 4.8 ft·lb) at 3,000 rpm | |
| Carburetor | Horizontal type, butterfly valve | |
| Cooling system | Forced-air | |
| Ignition system | Flywheel magneto ignition | |
| Lubricating system | Splash | |
| Starting system | Recoil starter | |
| Stoping system | Ignition primary circuit ground | |
| Fuel used | Unleaded gasoline (octane number 86 or higher) | |
Maintenance data
| Oil system | |
| Oil type | Honda 4-stroke “SE” |
| Recommended oil | 10W-30 |
| Oil capacity | 0.6 L (0.63 US. qt, 0.53 Imp. qt.) |
| Ignition system | |
| Spark plug | NGK: BR6HS, B6HS |
| Spark plug gap | 0.4 mm (0.016 in) |
