Honda EB6500

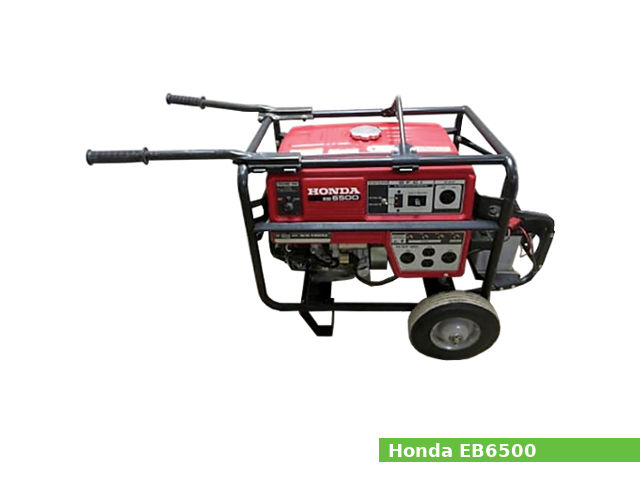

Honda EB6500The Honda EB6500 is a single-phase AC portable generator with 6.5 kVA of maximum power and 5.5 kVA of rated power and 60 Hz of rated frequency. The EB6500 generator is available with 120/240V rated voltage.

The Honda EB6500 generator uses single-cylinder Honda GX390 gasoline engine (389 cc; 23.7 cu.in.). The Honda GX390 K1 has overhead valve design, single-cylinder inclined by 25°, transistorized magneto ignition system and horizontal carburetor with a butterfly valve. Bore and stroke are 88.0 mm (3.46 in) and 64.0 mm (2.52 in), respectively. Compression ratio rating is 8.0:1.

The GX390 produced 13.0 HP (10.0 kW) at 3,600 rpm of maximum horsepower and 27 Nm (2.7 kg·m, 20.0 ft·lb) at 2,500 rpm of torque.

General information

Generator Specifications
Model Honda EB6500
Type EZCH
Dimensions (L x W x H): 1,200 x 665 x 720 mm (47.2 x 26.2 x 28.3 in)
Dry weight (without tines) 98.5 kg (217.2 lbs)
AC Rated voltage: 120/240V
AC Rated output: 5.5 kVA
AC Maximum output: 6.5 kVA
Rated frequency: 60 Hz
Rated current: 45.8/22.9 A
Fuel tank capacity 17.0 liters (4.5 US gal, 3.7 Imp. gal)
Engine
Engine model Honda GX390
Displacement 389 cm3 (23.7 cu-in)
Bore x stroke 88.0 x 64.0 mm (3.46 x 2.52 in)
Max. horsepower 13.0 HP (10.0 kW) at 3,600 rpm
Max. torque 27 Nm (2.7 kg·m, 20.0 ft·lb) at 2,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Splash
Starting system Recoil/Electric starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Engine
Maximum speed 3,850 ± 150 rpm
Idle speed 1,400 ± 150 rpm
Cylinder compression 6.0-8.5 kg/cm2 (85-121 psi, 0.59 – 0.83 MPa) at 600 rpm
Valve clearance
Intake valve 0.15 ± 0.02 (0.006 ± 0.001)
Exhaust valve 0.20 ± 0.02 (0.008 ± 0.001)
Oil system
Oil type Honda 4-stroke or an equivalent (SE or later)
Recommended oil SAE 10W-30
Oil capacity 1.1 L (1.16 US gal, 0.97 lmp qt)
Ignition system
Ignition timing B.T.D.C. 25° (Fixed)
Spark plug NGK: BPR5ES
DENSO: W16EPR-U
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
