Honda EC2200

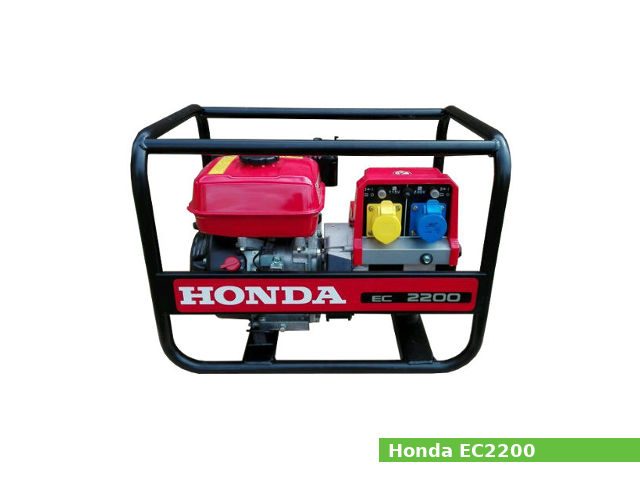

Honda EC2200 generatorThe Honda EC2200 is a single-phase AC 115/230V portable generator with 2.0 kVA of maximum power and 1.7 kVA of rated power and 50 Hz of rated frequency. The EC2200 generator is available with 115/230 V rated voltage (B1 type) or 230 V only (F, GV, W, IT types).

The Honda EC2200 generator uses single-cylinder (inclined by 25°) Honda GX160 gasoline engine (163 cc; 9.9 cu.in.). The engine has an overhead valve (OHV) design. The GX160 uses a recoil starter, horizontal carburetor with butterfly valve and transistorized magneto ignition. The cylinder bore is 68.0 mm (2.7 in) and the piston stroke is 45.0 mm (1.8 in), compression ratio rating is 8.5:1.

The GX160 produced 4.0 kW (5.5 HP) at 4,000 rpm of maximum horsepower and 11 N·m (1.1 kg·m, 8 ft·lb) at 2,500 rpm of torque.

General information

Generator Specifications
Model Honda EC2200
Type F, GV, W, IT B1
Dimensions (L x W x H): 585 x 435 x 440 mm (23.0 x 17.1 x 17.3 in)
Dry weight (without tines) 36.0 kg (79.4 lbs)
AC Rated voltage: 115V/230V 230V
AC Rated output: 1.7 kVA
AC Maximum output: 2.0 kVA
Rated frequency: 50 Hz
Rated current: 7.5 A 15/7.5 A
DC output:
Fuel tank capacity 3.6 L
Engine
Engine model Honda GX160
Displacement 163 cm3 (9.9 cu-in)
Bore x stroke 68.0 x 45.0 mm (2.68 x 1.77 in)
Max. horsepower 4.0 kW (5.5 HP) at 4,000 rpm
Max. torque 11 N·m (1.1 kg·m, 8 ft·lb) at 2,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Engine
Maximum speed 3,900 ± 100 rpm
Idle speed 1,400 ± 150 rpm
Cylinder compression 6.0-8.5 kg/cm2 (85-121 psi) at 600 rpm
Valve clearance
Intake valve clearance 0.15±0.02 mm (0.006±0.001 in)
Exhaust valve clearance 0.20±0.02 mm (0.008±0.001 in)
Oil system
Oil type Honda 4-stroke or an equivalent (SE or SF)
Recommended oil SAE 10W-30
Oil capacity 0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Ignition system
Ignition timing 25° B.T.D.C. (Fixed)
Spark plug NGK: BP6ES, BPR6ES
NIPPONDENSO: W20EP-U, W20EPR-U
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
Primary ignition coil resistance 0.8-1.0 Ω
Secondary ignition coil resistance 5.9-7.1 kΩ
Ignition coil air gap 0.4 ± 0.2 (0.016 ± 0.008)
