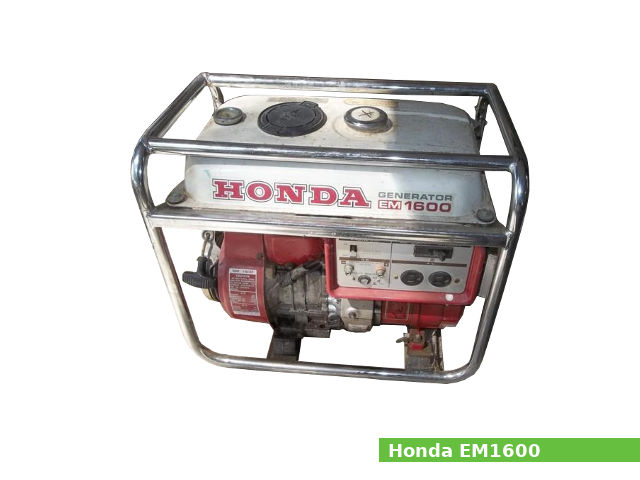

The Honda EM1600 is AC/DC portable generator with 1.6 KVA of maximum power, 1.4 KVA of rated power and 60Hz of rated frequency. The EM1600 generator is available with AC 120V and DC 12V rated voltage. The direct current terminals can be used for charging 12-volt automotive-type batteries only up to 8.3A.
The Honda EM1600 generator uses the GE200 single-cylinder gasoline engine with 197 cm3, (12.0 cu·in) of displacement. The engine has a side-valve (L-head) design, horizontal carburetor with butterfly valve, and transistorized magneto ignition system. The G200 engine’s compression ratio rating is 6.5:1, cylinder bore and piston stroke are 67.0 mm (2.64 in) and 56.0 mm (2.20 in), respectively.
The engine produced 5.5 PS (4.0 KW; 5.5 HP) at 3,600 rpm of maximum horsepower.
General information
| Generator Specifications | ||
| Model | Honda EM1600 | |
| Dimensions (L x W x H): | 545 x 360 x 475 mm (21.5 x 14.2 x 18.7 in) | |
| Dry weight | 44.8 kg (98.8 lbs) | |
| AC Rated voltage: | 120V | |
| AC Rated output: | 1.4 KVA (11.7 A) | |
| AC Maximum output: | 1.6 KVA | |
| Rated frequency: | 60 Hz | |
| DC output: | Only for charging automotive battery of 12V up to 8.3A | |
| Fuel tank capacity | 10.0 liters (2.6 US gal, 2.2 Imp. gal) | |
| Engine | ||
| Model | Honda GE200 (G200) | |
| Displacement | 197 cm3 (12.0 cu-in) | |
| Bore x stroke | 67.0 x 56.0 mm (2.64 x 2.20 in) | |
| Max. horsepower | 5.5 PS (4.0 KW; 5.5 HP) at 3,600 rpm | |
| Max. torque | – | |
| Carburetor | Horizontal type, butterfly valve | |
| Cooling system | Forced-air | |
| Ignition system | Flywheel magneto ignition | |
| Lubricating system | Splash | |
| Starting system | Recoil starter | |
| Stoping system | Ignition primary circuit ground | |
| Fuel used | Unleaded gasoline (octane number 86 or higher) | |
Maintenance data
| Engine | |
| Cylinder compression: | 6.0 kg/cm2 (85 psi) at 600 rpm |
| Valve clearance | |
| Intake valve clearance: | 0.08-0.16 mm (0.0031-0.0063 in) |
| Exhaust valve clearance: | 0.16-0.24 mm (0.0063-0.0094 in) |
| Oil system | |
| Lubrication system: | Splash type |
| Oil type: | SAE 10W-30 or 10W-40 |
| Recommended oil: | Honda 4-stroke or an equivalent (SE or SF) |
| Oil capacity: | 0.7 L (0.74 US. qt, 0.62 Imp. qt.) | Ignition system |
| Type: | Flywheel magneto ignition |
| Spark plug: | NGK:BR-4HS, ND: W14FR-U |
| Spark plug gap: | 0.6-0.7 mm (0.0236-0.0276 in) |
| Spark plug torque: | 20 N·m (2 kg·m, 14.7 ft·lb) |
