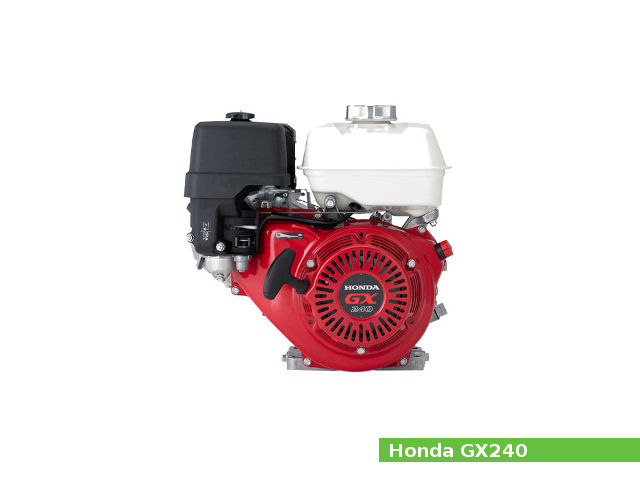

Honda GX240 K1 engineThe Honda GX240 K1/T1/UT1 is a 242 cc, (14.8 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications, such as construction equipment, tillers, generators, welders, pumps and other industrial applications.

The Honda GX240 K1 engine has a single cylinder inclined by 25°, overhead valve (OHV) design, horizontal type carburetor with butterfly valve, transistorized magneto ignition system, splash type lubricating system and forced-air cooling system. The GX240 K1 engine could be equipped with single element type, dual element type, oil-bath type or a cyclone-type air cleaner. The GX240K1 used 6.0 L (1.59 US. gal. 1.32 Imp. gal.) fuel tank.

This engine produced 8.2 PS (6.0 kW; 8.0 HP) at 3,600 rpm of horsepower and 17.0 N·m (1.7 kg·m, 12.5 ft·lb) at 2,500 rpm of torque.

Engine models with other features were also available:

  • H type – 1/6 reduction type PTO, this version produced 102.0 N·m (10.2 kg·m, 74 ft·lb) at 420 rpm of peak torque;
  • L type – 1/2 reduction type PTO, it produced 34.0 N·m (3.4 kg·m, 24 ft·lb) at 1,250 rpm of torque;
  • R type – 1/2 reduction type PTO with the centrifugal clutch.

General information

Engine Specifications
Engine modelGX240 K1/T1/UT1
Engine type4-stroke, OHV, single-cylinder, inclined by 25°
Displacement242 cm3, (14.8 cu·in)
Max. horsepower8.2 PS (6.0 kW; 8.0 HP) at 3,600 rpm
Max. torque17.0 N·m (1.7 kg·m, 12.5 ft·lb) at 2,500 rpm
Cooling systemForced air
Air cleaner Dual element type;
Single element type,
Oil-bath type
Cyclone type
Lubricating systemSplash type
Ignition systemTransistorized magneto ignition
Fuel systemHorizontal type carburetor with butterfly valve
Fuel consumption313 g/kWh
Fuel tank capacity6.0 L (1.59 US. gal. 1.32 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil or electric starter
Stoping systemIgnition primary circuit ground
GovernorCentrifugal govervor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)Type S: 35 x 450 x 410 mm (13.2 x 17.7 x 16.1 in)
Dry weightType S: 25.0 kg (55.1 lbs)

Cylinder Block and Head

A 73.0 mm (2.87 in) cylinder bore and 58.0 mm (2.28 in) piston stroke give the GX24 0K1 engine a total of 242 cc of displacement. Compression ratio rating is 8.2:1. The Honda GX240 K1 engine has a cast iron cylinder sleeve, ball bearing supported the crankshaft and heavy duty balancer shaft. The piston has two compression rings and a single oil ring.

Cylinder block
Compression ratio:8.2:1
Cylinder bore:73.0 mm (2.87 in)
Piston stroke:58.0 mm (2.28 in)
Cylinder internal diameter (standard):73.000 mm (2.874 in)
Piston skirt outer diameter (standard):72.985 mm (2.8734 in)
Number of piston rings (compression / oil):2/1
Connecting rod big end diameter (standard):33.025 mm (1.3002 in)
Connecting rod small end diameter (standard):18.005 mm (0.7089 in)
Piston pin diameter:18.000 mm (0.7087 in)
Side clearance (Top):0.015-0.045 mm (0.0006-0.0018 in)
Side clearance (Second):0.015-0.045 mm (0.0006-0.0018 in)
Side clearance (Oil):0.015-0.045 mm (0.0006-0.0018 in)
Ring end gap (Top):0.20-0.40 mm (0.0079-0.0157 in)
Ring end gap (Second):0.20-0.40 mm (0.0079-0.0157 in)
Ring end gap (Oil):0.20-0.40 mm (0.0079-0.0157 in)
Ring width (Top):2.0 mm (0.0787 in)
Ring width (Second):2.0 mm (0.0787 in)
Ring width (Oil):2.8 mm (0.1102 in)
Crankpin journal diameter:32.985 mm (1.2986 in)
Crankshaft center distance:29 mm (1.14 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valve steam diameter (INTAKE):6.59 mm (0.2594 in)
Valve steam diameter (EXHAUST):6.59 mm (0.2594 in)
Valve spring free length (INTAKE):39.0 mm (1.5354 in)
Valve spring free length (EXHAUST):39.0 mm (1.5354 in)
Camshaft lobe height (INTAKE):31.52-31.92 mm (1.2409-1.2567 in)
Camshaft lobe height (EXHAUST):31.56-31.96 mm (1.2425-1.2583 in)
Camshaft journal diameter :15.984 mm (0.6293 in)

Tightening torque

Tightening torque settings
Connecting rod bolt:14 Nm; 1.4 kg·m; 10 ft·lb;
Cylinder head bolt:35 Nm; 3.5 kg·m; 25 ft·lb;
Flywheel nut:115 Nm; 11.5 kg·m; 83 ft·lb;
Rocker arm pivot lock nut:10 Nm; 1.0 kg·m; 7 ft·lb;
Rocker arm pivot bolt:24 Nm; 2.4 kg·m; 17 ft·lb;
Oil drain bolt:23 Nm; 2.3 kg·m; 17 ft·lb

Service Data

The Honda 4-stroke or an equivalent (SE or SF) oil with a viscosity of SAE 10W-30 is recommended for the GX240 K1, refilling oil capacity is 1.1 L (1.16 US. qt, 0.97 Imp. qt.). Recommended spark plug is NGK: BP6ES, BPR6ES NIPPONDENSO: W20EP-U, W20EPR-U with 0.7-0.8 mm (0.0276-0.0315 in) spark plug gap.

The valve clearance is 0.13-0.17 mm (0.0051-0.0067 in) for intake and exhaust valves. Standard cylinder compression is 6.0-8.0 kg/cm2 (85-121 psi) at 600 rpm.

Maximum speed:3,850±150 rpm
Idle speed:1,400 ±150 rpm
Cylinder compression:6.0-8.0 kg/cm2 (85-121 psi) at 600 rpm
Valve clearance
Intake valve clearance:0.15 ± 0.02 mm (0.006 ± 0.001 in)
Exhaust valve clearance:0.20 ± 0.02 mm (0.008 ± 0.001 in)
Oil system
Lubrication system:Splash type
Oil type:Honda 4-stroke or an equivalent (SE or SF)
Recommended oil:SAE 10W-30
Oil capacity:1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Reduction oil capacity (centrifugal clutch):0.3 L (0.32 US. qt, 0.26 Imp. qt.)
Fuel system
Type:Horizontal type carburetor with butterfly valve
Main jet: Externally vented carburetor: #85
Internally vented carburetor: #92
Float height:13.2 mm (0.5197 in)
Pilot screw opening:2 turns out
Ignition system
Type:Transistorized magneto ignition
Ignition timing:B.T.D.C. 20° (Fixed)
Spark plug: NGK: BP6ES, BPR6ES;
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Ignition coil air gap0.2-0.6 mm (0.0079-0.0079 in)


Manufacturer or BrandModels
HondaEB3000X, EB3500X, EB3800X, EM3500SX, EM3500X, EM3800SX
