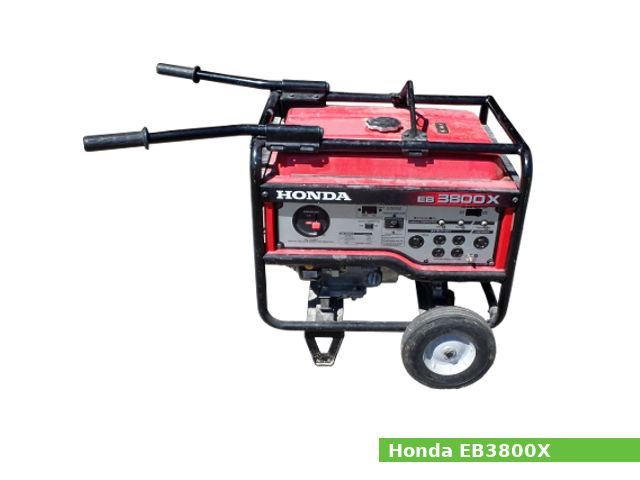

Honda EB3800XThe Honda EB3800X is AC portable generator with 3.8 KVA of maximum power, 3.3 KVA of rated power and 60Hz of rated frequency. The EB3800X generator is available with AC 120/240V rated voltage.

The Honda EB3800X generator uses a single-cylinder Honda GX240 gasoline engine 242 cc (14.8 The engine has an overhead valve (OHV) design. The GX240 uses a horizontal carburetor with a butterfly valve and transistorized magneto ignition. The cylinder bore and the piston stroke are 73.0 mm (2.9 in) and 58.0 mm (2.3 in), respectively. The compression ratio rating is 8.2:1.

The GX240 produced 8.2 PS (6.0 KW; 8.0 HP) at 3,600 rpm of maximum horsepower and torque was 17.0 Nm (1.7 kg·m, 12 ft·lb) at 2,500 rpm.

General information

Generator Specifications
ModelHonda EB3800X
Dimensions (L x W x H):1,040 x 691 x 773 mm (40.9 x 27.2 x 30.4 in)
Dry weight84.0 kg (185.0 lbs)
AC Rated voltage:120/240V
AC Rated output:3.8 KVA
AC Maximum output:3.3 KVA
AC Rated ampere:27.5/13.8 A
Rated frequency:60 Hz
Fuel tank capacity23.5 liters (6.2 US gal, 5.2 Imp. gal)
Engine modelHonda GX240
Displacement242 cm3 (14.8 cu-in)
Bore x stroke73.0 x 58.0 mm (2.9 x 2.3 in)
Max. horsepower8.0 HP (6.0 kW) at 3,600 rpm
Max. torque17.0 Nm (1.7 kg·m, 12 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemTransistorized magneto ignition
Lubricating systemSplash
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Maintenance data

Cylinder compression6.0-8.5 kg/cm2 (85-151 psi) at 600 rpm
Valve clearance
Intake valve0.15 ± 0.02 (0.006 ± 0.001)
Exhaust valve0.20 ± 0.02 (0.008 ± 0.001)
Float height13.2 mm (0.52 in)
Pilot screw opening2
Oil system
Oil typeHonda 4-stroke or an equivalent (SE or SF)
Recommended oilSAE 10W-40, 10W-30
Oil capacity1.1 L (1.16 US gal, 0.97 lmp qt)
Ignition system
Ignition timing20 ° B.T.D.C (Fixed)
Spark plug NGK: BP6ES, BPR6ES
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Spark plug cap7.5-12.5 kΩ
Primary ignition coil resistance0.8-1.0 kΩ
Secondary ignition coil resistance5.9-7.1 kΩ
Ignition coil air gap0.4 ± 0.2 (0.016 ± 0.008)
