Honda EB2200i

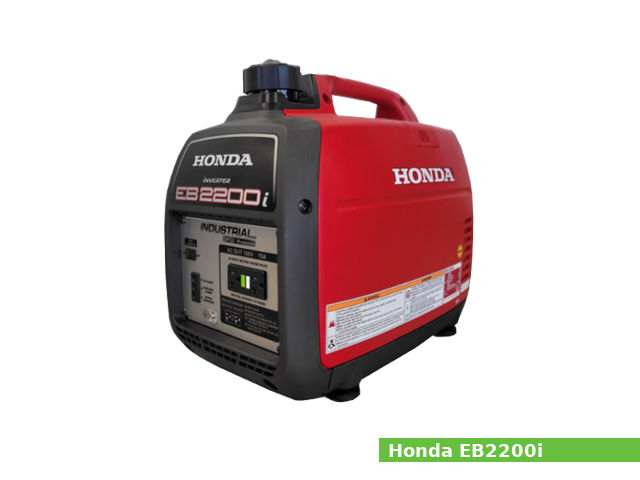

Honda EB2200iThe Honda EB2200i is AC portable generator with 1.8 KVA of rated power, 2.2 KVA of maximum output power and 60Hz of rated frequency. The EB2200i generator is available with AC 120V.

The Honda EB2200i generator used the Honda GXR120T single-cylinder gasoline engine with 121 cm3, (7.4 cu·in) of displacement. The engine has an overhead camshaft (OHC) design, a horizontal type carburetor with a butterfly valve, and a transistorized magneto ignition system. Cylinder bore and piston stroke are 60.0 mm (2.36 in) and 43.0 mm (1.69 in), respectively. Compression ratio rating is 8.5:1.

The Honda GXR120 T engine produced 3.7 PS (2.7 kW; 3.6 HP) at 3,600 rpm of maximum output power and 7.5 N·m (0.8 kg·m, 5.5 ft·lb) at 2,500 rpm of peak torque.

General information

Generator Specifications
Model Honda EB2200iT
Dimensions (L x W x H): 509 x 290 x 425 mm (20.0 x 11.4 x 16.7 in)
Dry weight 21.5 kg (47.4 lbs)
AC Rated voltage: 120V
AC Rated output: 1.8 KVA (15.0 A)
AC Maximum output: 2.2 KVA
Rated frequency: 60 Hz
Fuel tank capacity 3.6 liters (0.95 US gal, 0.8 Imp. gal)
Model Honda GXR120 T/RT
Displacement 121 cm3 (7.4 cu-in)
Bore x stroke 60.0 x 43.0 mm (2.36 x 1.79 in)
Max. horsepower 3.7 PS (2.7 kW; 3.6 HP) at 3,600 rpm
Rated power 7.5 N·m (0.8 kg·m, 5.5 ft·lb) at 2,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Flywheel magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Compression pressure
Cylinder compression: 5.1 kg/cm2 (73 psi) at 700 rpm
Valve clearance
Intake valve clearance: 0.15±0.04 mm (0.006±0.002 in)
Exhaust valve clearance (COLD): 0.20±0.04 mm (0.008±0.002 in)
Oil system
Lubrication system: Splash
Oil type: Honda 4-stroke or an equivalent (SE or higher)
Recommended oil: SAE 10W-30
Oil capacity: 0.44L (0.46 US.qts, 0.39 Imp. qts)
Ignition system
Type: Transistorized magneto ignition
Ignition timing: 25° B.T.D.C.
Spark plug: NGK: CR5HSB
Spark plug gap: 0.7-0.8 mm (0.0276-0.0315 in)
Ignition coil air gap 0.5-0.7 mm (0.0197-0.0276 in)
