Honda EC2000

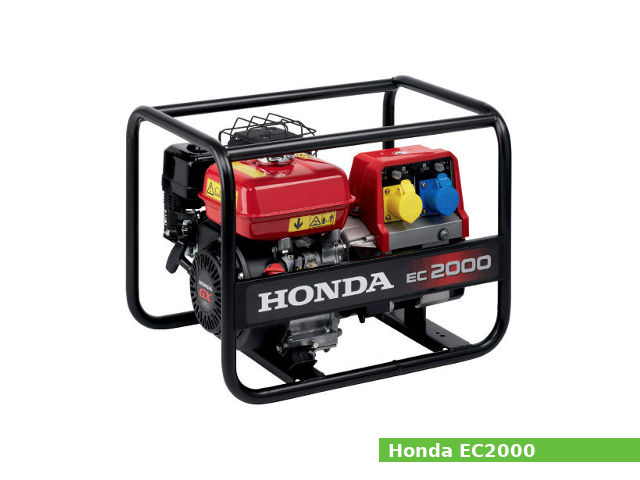

Honda EC2000 generatorThe Honda EC2000 is a single-phase AC 115/230V portable generator with 2.0 kVA of maximum power and 1.7 kVA of rated power and 50 Hz of rated frequency. The EC2000 generator is available with 115/230 V rated voltage (B type) or 230 V only (F, GV, W, IT types).

The Honda EC2000 generator uses single-cylinder (inclined by 25°) Honda GX160 T1 gasoline engine (163 cc; 9.9 The engine has an overhead valve (OHV) design. The GX160 uses a recoil starter, horizontal carburetor with a butterfly valve, and transistorized magneto ignition. The cylinder bore is 68.0 mm (2.7 in) and the piston stroke is 45.0 mm (1.8 in), the compression ratio rating is 8.5:1.

The GX160 produced 4.0 kW (5.5 HP) at 4,000 rpm of maximum horsepower and 11 N·m (1.1 kg·m, 8 ft·lb) at 2,500 rpm of torque.

General information

Generator Specifications
ModelHonda EC2000
TypeF, GV, W, ITB
Dimensions (L x W x H):585 x 435 x 440 mm (23.0 x 17.1 x 17.3 in)
Dry weight (without tines)36.0 kg (79.4 lbs)
AC Rated voltage:115V/230V230V
AC Rated output:1.7 kVA
AC Maximum output:2.0 kVA
Rated frequency:50 Hz
Rated current:7.5 A15/7.5 A
DC output:
Fuel tank capacity3.6 L
Engine modelHonda GX160 T1
Displacement163 cm3 (9.9 cu-in)
Bore x stroke68.0 x 45.0 mm (2.68 x 1.77 in)
Max. horsepower4.0 kW (5.5 HP) at 4,000 rpm
Max. torque11 N·m (1.1 kg·m, 8 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemTransistorized magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Maintenance data

Maximum speed3,900 ± 100 rpm
Idle speed1,400 ± 150 rpm
Cylinder compression6.0-8.5 kg/cm2 (85-121 psi) at 600 rpm
Valve clearance
Intake valve clearance0.15±0.02 mm (0.006±0.001 in)
Exhaust valve clearance0.20±0.02 mm (0.008±0.001 in)
Oil system
Oil typeHonda 4-stroke or an equivalent (SE or SF)
Recommended oilSAE 10W-30
Oil capacity0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Ignition system
Ignition timing25° B.T.D.C. (Fixed)
Spark plugNGK: BP6ES, BPR6ES
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Primary ignition coil resistance0.8-1.0 Ω
Secondary ignition coil resistance5.9-7.1 kΩ
Ignition coil air gap0.4 ± 0.2 (0.016 ± 0.008)
