Honda EG1000

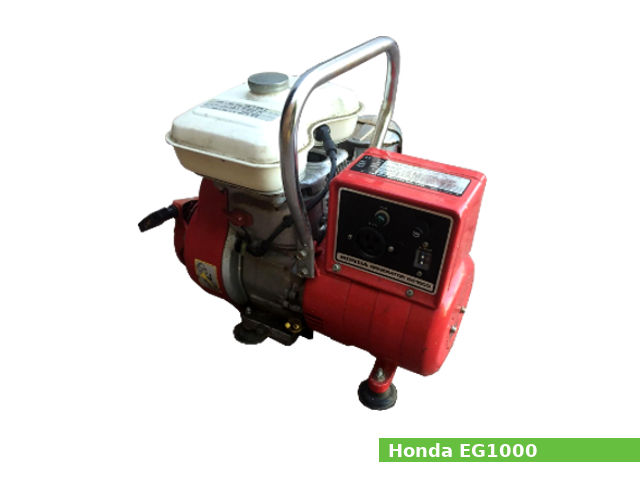

Honda EG1000The Honda EG1000 is a single-phase AC/DC 115V portable generator with 1.0 kVA of maximum power and 0.8 kVA of rated power and 60 Hz of rated frequency. The direct current terminals can be used for charging 12-volt automotive-type batteries only up to 8.3A.

The Honda EG1000 generator uses single-cylinder Honda G150 K1 gasoline engine (144 cc; 8.8 The Honda G150 is a single-cylinder air-cooled 4-stroke internal combustion engine with side-valve (L-head) design. The engine uses transistorized magneto ignition, horizontal type carburetor, and recoil starter. The G150 engine a compression ratio rating is 6.5:1, cylinder bore and the piston stroke are 64.0 mm (2.52 in) and 45.0 mm (1.77 in), respectively.

The G150 produced 3.5 HP (2.6 kW) at 3600 rpm of maximum horsepower and 7.1 Nm (0.72 kg·m; 5.2 ft·lb) at 3,000 rpm of torque.

General information

Generator Specifications
ModelHonda EG1000
Dimensions (L x W x H):475 x 375 x 450 mm (18.7 x 14.8 x 17.7 in)
Dry weight (without tines)29.0 kg (63.9 lbs)
AC Rated voltage:115V
AC Rated output:0.8 kVA
AC Maximum output:1.0 kVA
Rated frequency:60 Hz
Rated current:7.0 A
DC output:Only for charging automotive battery of 12V up to 8.3A
Fuel tank capacity2.5 liters (2.64 US.qts, 2.2 Imp. qts)
Engine modelHonda G150
Displacement144 cm3 (8.8 cu-in)
Bore x stroke64.0 x 45.0 mm (2.52 x 1.77 in)
Max. horsepower3.5 HP (2.6 kW) at 3600 rpm
Max. torque7.1 Nm (0.72 kg·m; 5.2 ft·lb) at 3,000 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemTransistorized magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Maintenance data

Maximum speed3,850 ± 150 rpm
Idle speed1,400 ± 150 rpm
Cylinder compression6.0 kg/cm2 (85 psi)
Adjust valve clearance
Intake valve0.08-0.16 mm (0.0031-0.0063 in)
Exhaust valve0.16-0.24 mm (0.0063-0.0094 in)
Oil system
Oil typeHonda 4-stroke “SE”
Recommended oil10W-40
Oil capacity0.7 L (1.5 US pt. 1.2 Imp. pt.)
Main jet#70
Float height8.2 mm (0.32 in)
Pilot screw opening1-5/8 turns out
Ignition system
Spark plug NGK: B4H, BR4HS
Spark plug gap0.6-0.7 mm (0.024-0.028 in)
Spark plug cap resistance10 kΩ
