Honda EG1000N

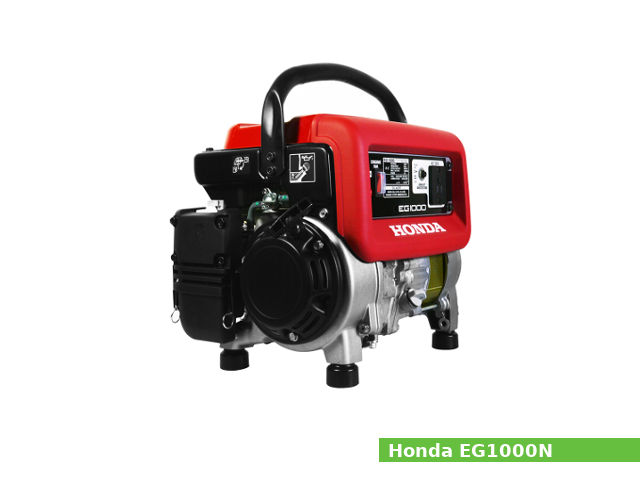

Honda EG1000NThe Honda EG1000N is a single-phase AC portable generator with a 0.85 KVA or 1.0 kVA of maximum power, a 0.75 kVA or 0.95 KVA of rated power and 50 Hz or 60 Hz of rated frequency (depending on the type of generator). The EG1000N generator is available with AC 230V (K,LS versions), 220V (M, R, RA, S versions) or 120V (L version) rated voltage.

The Honda EG1000N generator uses single-cylinder Honda GX80D gasoline engine. The Honda GX80 is a single-cylinder air-cooled 4-stroke internal combustion engine. The GX80 engine a compression ratio rating is 9.0:1, cylinder bore and the piston stroke are 46.0 mm (1.81 in) and 48.0 mm (1.89 in), respectively. This engine uses transistorized magneto ignition, horizontal type carburetor with butterfly valve, and recoil starter.

The GX80 engine produces 2.0 PS (1.5 kW; 2.0 HP) at 3,600 rpm of horsepower and 4.5 N·m (0.5 kg·m, 3.3 ft·lb) at 2,500 rpm of torque.

General information

Generator Specifications
Model Honda EG1000N
Type K M, R, RA CL L S LS
Dimensions (L x W x H): 376 x 301 x 430 mm (14.8 x 11.9 x 16.9 in)
Dry weight (without tines) 22.6 kg (49.8 lbs)
AC Rated voltage: 230V 220V 120V 220V 230V
AC Rated output: 0.75 KVA 0.9 KVA
AC Maximum output: 0.85 KVA 1.0 KVA
Rated frequency: 50 Hz 60 Hz
Rated current: 3.3 A 3.4 A 7.5 A 4.1 A 3.9 A
Fuel tank capacity 3.6 liters (1.0 US gal, 0.8 Imp. gal)
Engine model Honda GX80
Displacement 79.7 cm3 (4.88 cu-in)
Bore x stroke 46.0 x 48.0 mm (1.81 x 1.89 in)
Max. horsepower 2.0 PS (1.5 kW; 2.0 HP) at 3,600 rpm
Max. torque 4.5 N·m (0.5 kg·m, 3.3 ft·lb) at 2,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Valve clearance
Intake valve clearance (COLD): 0.10±0.02 mm (0.004±0.001 in)
Exhaust valve clearance (COLD): 0.15±0.02 mm (0.006±0.001 in)
Oil system
Lubrication system: Splash type
Oil type: SF or higher
Recommended oil: SAE 10W-30
Oil capacity: 0.36 L (0.38 US. qt, 0.32 Imp. qt.)
Ignition system
Type: Transistorized magneto ignition
Spark plug: NGK LR6C-E
Spark plug gap: 0.7-0.8 mm (0.0276-0.0315 in)
