Honda EG1200X

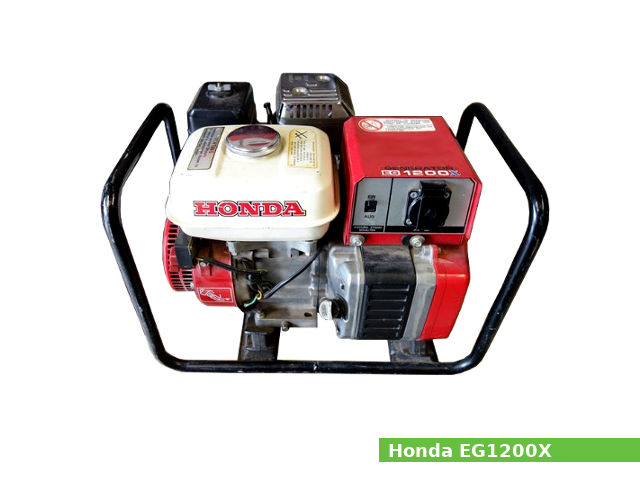

Honda EG1200XThe Honda EG1200X is AC portable generator with 1.2 KVA of maximum power, 1.0 KVA of rated power and 50Hz of rated frequency. The EG1200X generator is available with AC 220V or 240V (depending on model) and rated voltage.

The Honda EG1200X generator is equipped with the GX120 K1 single-cylinder gasoline engine with 118 cm3, (7.2 cu·in) of displacement. The engine has an OHV (overhead valve) design, horizontal carburetor with butterfly valve, and transistorized magneto ignition system. The GX120 K1 engine’s compression ratio rating is 8.5:1, cylinder bore and piston stroke are 60.0 mm (2.4 in) and 42.0 mm (1.7 in), respectively.

The engine produced 3.9 PS (2.9 KW; 4.0 HP) at 4,000 rpm of maximum horsepower and 7.5 N·m (0.75 kg·m, 5.4 ft·lb) at 2,500 rpm of torque.

The Honda EG1200X generator with serial number GX110 1000001-9999999 uses the Honda GX110 engine. A 57.0 mm (2.24 in) cylinder bore and 42.0 mm (1.65 in) piston stroke give the GX110 engine a total of 107 cc of displacement. The compression ratio rating is 8.7:1. This engine produced 3.5 PS (2.6 kW; 3.5 HP) at 4,000 rpm of horsepower and 6.7 N·m (0.7 kg·m, 4.9 ft·lb) at 2,800 rpm of torque.

General information

Generator Specifications
Model Honda EG1200X
Dimensions (L x W x H): 475 x 390 x 400 mm (18.7 x 15.4 x 15.7 in)
Dry weight 32.0 kg (70.5 lbs)
AC Rated voltage: E,F,FH,G,D,GV: 220V
U,B: 240V
AC Rated output: 1.0 KVA
AC Rated ampere: E,F,FH,G,D,GV: 4.5 A
U,B: 4.2 A
AC Maximum output: 1.2 KVA
Rated frequency: 50 Hz
Fuel tank capacity 2.7 liters (0.7 US gal, 0.6 Imp. gal)
Engine Honda GX120
Model Honda GX120 K1
Displacement 118 cm3 (7.2 cu-in)
Bore x stroke 60.0 x 42.0 mm (2.4 x 1.7 in)
Max. horsepower 3.9 PS (2.9 KW; 4.0 HP) at 4,000 rpm
Max. torque 7.5 N·m (0.75 kg·m, 5.4 ft·lb) at 2,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Flywheel magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Engine Honda GX110
Model Honda GX110
Displacement 107 cm3 (6.5 cu-in)
Bore x stroke 57.0 x 42.0 mm (2.24 x 1.70 in)
Max. horsepower 3.5 PS (2.6 kW; 3.5 HP) at 4,000 rpm
Max. torque 6.7 N·m (0.7 kg·m, 4.9 ft·lb) at 2,800 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Flywheel magneto ignition
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Honda GX120 maintenance data

Engine
Cylinder compression: 6.0-8.5 kg/cm2 (85-121 psi) at 600 rpm
Valve clearance
Intake valve clearance: 0.13-0.17 mm (0.0051-0.0067 in)
Exhaust valve clearance: 0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Lubrication system: Splash
Oil type: API SG, SF/CC, CD
Recommended oil: SAE 10W-30
Oil capacity: 0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Fuel system
Type: Horizontal type carburetor with butterfly valve
Float height: 13.7 mm (0.5394 in)
Ignition system
Type: Transistorized magneto ignition
Ignition timing: 25° B.T.D.C. (Fixed)
Spark plug: NGK BP6ES, BPR6ES
NIPPONDENSO W20EP-U, W20EPR-U
Spark plug gap: 0.7-0.8 mm (0.0276-0.0315 in)
Ignition coil air gap 0.2-0.6 mm (0.0079-0.0236 in)

Honda GX110 maintenance data

Engine
Cylinder compression 6.0-8.5 kg/cm2 (85-151 psi) at 600 rpm
Carburetor
Type Horizontal type, butterfly valve
Main jet #60
Float height 13.7±1.5 mm (0.54±0.06 in)
Pilot screw opening 2-1/4 turns out
Oil system
Lubricating system Splash type
Oil type Honda 4-stroke or an equivalent (SE or SF)
Recommended oil SAE 10W-30
Oil capacity 0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Ignition system
Ignition timing B.T.D.C. 25° / 1,400 rpm
Type Transistorized magneto ignition
Spark plug NGK: BPR6ES
NIPPONDENSO: W20EPR-U
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
Ignition coil air gap 0.2-0.6 mm (0.01-0.02 in)
Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.
