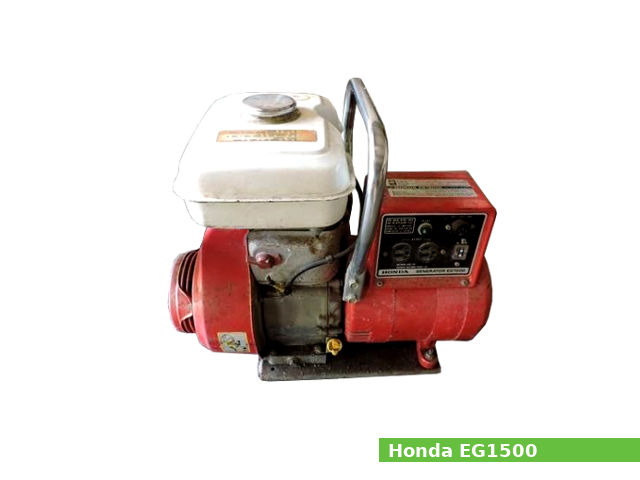

Honda EG1500

Honda EG1500The Honda EG1500 is AC portable generator. The maximum power available at the receptacles is 1.5 kVA (1,500 watts). The generator is equipped with an AVR (Auto Voltage Regulator). The voltage need not be adjusted if the frequency is adjusted property.

The Honda EG1500 generator uses a single-cylinder Honda G200 gasoline engine with (197 cc; 12.0 of displacement. The cylinder bore and the piston stroke are 67.0 mm (2.64 in) and 56.0 mm (2.2 in), respectively. The compression ratio rating is 6.5:1.

The G200 K1 engine produced 5.0 PS (3.7 kW; 5.0 HP) at 3,600 rpm of maximum horsepower.

General information

Generator Specifications
ModelHonda EG1500
Dimensions (L x W x H):525 x 390 x 450 mm (20.7 x 15.4 x 17.7 in)
Dry weight (without tines)34.5 kg (74.0 lbs)
AC Rated voltage:115V
AC Rated output:1.2 KVA (1,100 watts), 10.4A
AC Maximum output:1.5 KVA (1,500 watts)
AC Cycles:60 Hz
DC output:
Fuel tank capacity3.5 liters (0.9 US gal, 0.8 Imp. gal)
Engine modelHonda G200
Displacement197 cm3 (12.0 cu-in)
Bore x stroke67.0 x 56.0 mm (2.64 x 2.20 in)
Max. horsepower5.0 PS (3.7 kW; 5.0 HP) at 3,600 rpm
Max. torque
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemFlywheel magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Maintenance data

Maximum speed:3,850±150 rpm
Idle speed:1,400±100 rpm rpm
Cylinder compression:6.0 kg/cm2 (85 psi) at 600 rpm
Valve clearance
Intake valve clearance (HOT):0.08-0.16 mm (0.0031-0.0063 in)
Exhaust valve clearance (HOT):0.16-0.24 mm (0.0063-0.0094 in)
Oil system
Lubrication system:Splash type
Oil type:SAE 10W-30 or 10W-40
Recommended oil:Honda 4-stroke or an equivalent (SE or SF)
Oil capacity:0.7 L (0.74 US. qt, 0.62 Imp. qt.)
Ignition system
Type:Flywheel magneto ignition
Ignition timing:B.T.D.C. 20° (Fixed)
Spark plug:NGK: BR-4HS
Spark plug gap:0.6-0.7 mm (0.0236-0.0276 in)
Spark plug torque:20 N·m (2 kg·m, 14.7 ft·lb)
