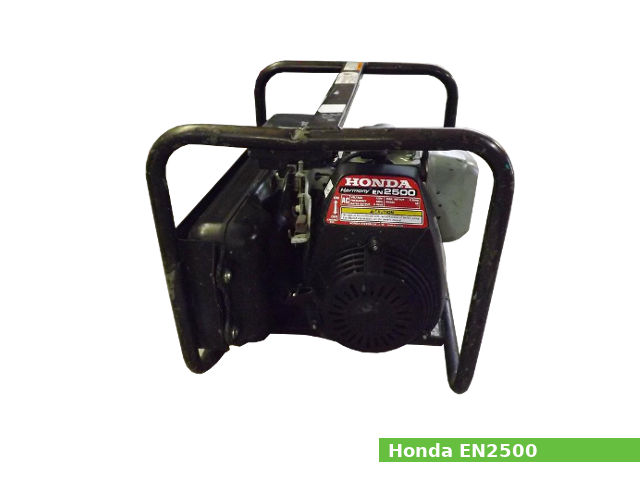

Honda EN2500

Honda EN2500The Honda EN2500 is AC portable generator with 2.5 KVA of maximum power, 2.3 KVA of rated power and 60Hz of rated frequency. The EN2500 generator is available with AC 120V rated voltage.

The Honda EN2500 generator is equipped with the GC160 single-cylinder gasoline engine with 160 cm3, (9.8 cu·in) of displacement. The engine has an OHC (overhead camshaft) design, horizontal carburetor with butterfly valve, and transistorized magneto ignition system. A 64.0 mm (2.5 in) cylinder bore and 50.0 mm (2.0 in) piston stroke give the engine a total of 160 cc of displacement. The compression ratio is 8.5:1.

The engine produced 5.0 PS (3.7 KW; 5.0 HP) at 3,600 rpm of maximum horsepower and 10.3 N·m (1.05 kg·m, 7.6 ft·lb) at 2,500 rpm of torque.

General information

Generator Specifications
ModelHonda EN2500 (EZFS)
Dimensions (L x W x H):540 x 444 x 439 mm (21.3 x 17.5 x 17.3 in)
Dry weight A: 29.0 kg (63.9 lbs)
AL: 32.0 kg (70.5 lbs)
AC Rated voltage:120V
AC Rated output:2.3 KVA
AC Rated ampere:19.2A
AC Maximum output:2.5 KVA
Rated frequency:60 Hz
Fuel tank capacity A: 1.9 liters (0.5 US gal, 0.4 Imp. gal)
AL: 11.0 liters (2.9 US gal, 2.4 Imp. gal)
ModelHonda GC160
Displacement160 cm3 (9.8 cu-in)
Bore x stroke64.0 x 50.0 mm (2.52 x 1.97 in)
Max. horsepower5.0 PS (3.7 KW; 5.0 HP) at 3,600 rpm
Max. torque10.3 N·m (1.05 kg·m, 7.6 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemFlywheel magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Maintenance data

Maximum speed:3,850±150 rpm
Idle speed:1,400±150 rpm
Valve clearance
Intake valve clearance:0.15±0.04 mm (0.006±0.002 in)
Exhaust valve clearance:0.20±0.04 mm (0.008±0.002 in)
Oil system
Lubrication system:Splash
Oil type:Honda 4-stroke or an equivalent (SE or SF)
Recommended oil:SAE 10W-30
Oil capacity:0.58 L (0.61 US. qt, 0.51 Imp. qt.)
Fuel system
Type:Horizontal type carburetor with butterfly valve
Main jet:#65
Float height:9.2 mm (0.3622 in)
Pilot screw opening:1-3/4 turns out
Ignition system
Type:Transistorized magneto ignition
Ignition timing:20° B.T.D.C.
Spark plug:NGK BPR6ES
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:20 N·m (2 kg·m, 14.7 ft·lb)
