Honda EB2200X

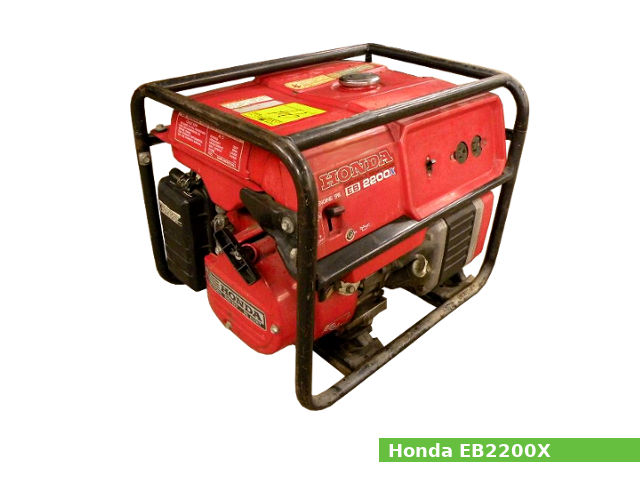

Honda EB2200XThe Honda EB2200X is AC portable generator with 2.0 KVA of rated power, 2.2 KVA of maximum output power and 60Hz of rated frequency. The EB2200X generator is available with AC 120V.

The Honda EB2200X generator used the Honda GX140 single-cylinder gasoline engine with 144 cm3, (8.8 cu·in) of displacement. The engine has an overhead valve (OHV) design, a horizontal type carburetor with a butterfly valve, and a transistorized magneto ignition system. The cylinder bore is 64.0 mm (2.5 in) and the piston stroke is 45.0 mm (1.77 in). The compression ratio rating is 8.7:1.

The engine produced 5.0 PS (3.6 KW; 4.8 HP) at 4,000 rpm of maximum horsepower and 9.8 N·m (1.0 kg·m, 7.7 ft·lb) at 2,800 rpm of peak torque.

General information

Generator Specifications
Model Honda EB2200X
Dimensions (L x W x H): 505 x 420 x 420 mm (19.9 x 16.5 x 16.5 in)
Dry weight 43.0 kg (94.8 lbs)
AC Rated voltage: 120V
AC Rated output: 2.0 KVA (16.7 A)
AC Maximum output: 2.2 KVA
Rated frequency: 60 Hz
Fuel tank capacity 11.0 L (2.9 US gal, 2.4 Imp. gal)
Engine
Model Honda GX140
Displacement 144 cm3 (8.8 cu-in)
Bore x stroke 64.0 x 45.0 mm (2.5 x 1.77 in)
Max. horsepower 5.0 PS (3.6 KW; 4.8 HP) at 4,000 rpm
Rated power 9.8 N·m (1.0 kg·m, 7.7 ft·lb) at 2,800 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Flywheel magneto ignition or CDI (KA and KE models)
Lubricating system Splash
Starting system Recoil starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)

Maintenance data

Engine
Cylinder compression 6.0-8.5 kg/cm2 (85-151 psi) at 600 rpm
Carburetor
Type Horizontal type, butterfly valve
Main jet #68
Float height 13.7±1.5 mm (0.54±0.06 in)
Pilot screw opening 1 turns out
Oil system
Lubricating system Splash type
Oil type Honda 4-stroke or an equivalent (SE or SF)
Recommended oil SAE 10W-30
Oil capacity 0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Ignition system
Ignition timing B.T.D.C. 25° / 1,400 rpm
Type Transistorized magneto ignition
Spark plug NGK: BPR6ES
NIPPONDENSO: W20EPR-U
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
Ignition coil air gap 0.2-0.6 mm (0.01-0.02 in)
