Honda EB2800i

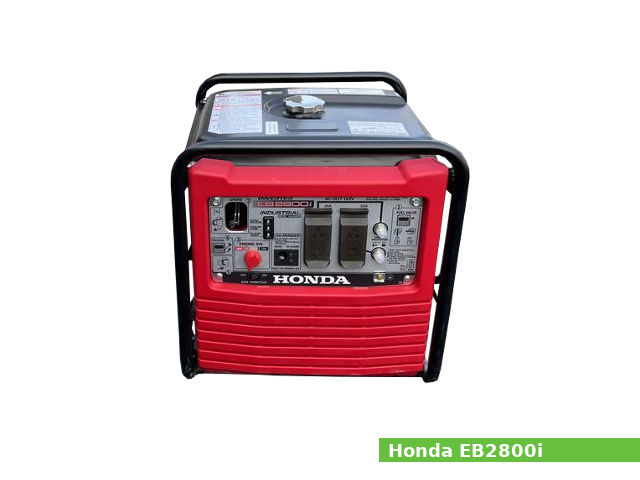

Honda EB2800iThe Honda EB2800i is AC lightweight inverter generator with Eco Throttle and GFCI receptacles. The EB2800i generator has a 2.8 KVA of maximum power, 2.5 KVA of rated power and 60Hz of rated frequency. The EB2800i generator is available with AC 120V rated voltage.

The Honda EB2800i generator is equipped with the Honda GC190 single-cylinder gasoline engine with 187 cm3, (11.4 cu·in) of displacement. The engine has an OHC (overhead camshaft) design, horizontal carburetor with butterfly valve, and transistorized magneto ignition system. The GC190 engine’s compression ratio rating is 8.5:1, cylinder bore and piston stroke are 69.0 mm (2.72 in) and 50.0 mm (1.97 in), respectively.

The Honda GC190 engine produced 6.0 PS (4.4 kW; 6.0 HP) at 3,600 rpm of maximum output power and 12.1 N·m (1.2 kg·m, 8.9 ft·lb) at 2,500 rpm of peak torque.

General information

Generator Specifications
ModelHonda EB2800i, EZCP, Type AG
Dimensions (L x W x H):430 x 448 x 481 mm (16.9 x 17.6 x 18.9 in)
Dry weight Type A: 30.3 kg (66.8 lbs)
Type AG, AN: 30.7 kg (67.7 lbs)
AC Rated voltage:120V
AC Rated output:2.5 KVA
AC Rated ampere:20.8A
AC Maximum output:2.8 KVA
Rated frequency:60 Hz
Fuel tank capacity8.1 liters (2.1 US gal, 1.8 Imp. gal)
ModelHonda GC190
Displacement187 cm3 (11.4 cu-in)
Bore x stroke69.0 x 50.0 mm (2.72 x 1.97 in)
Max. horsepower6.0 PS (4.4 kW; 6.0 HP) at 3,600 rpm
Max. torque12.1 N·m (1.2 kg·m, 8.9 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemFlywheel magneto ignition
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)

Maintenance data

Maximum speed:3,850±150 rpm
Idle speed:1,400 ±150 rpm
Cylinder compression:5.0 kg/cm2 (71 psi) at 600 rpm
Valve clearance
Intake valve clearance:0.11-0.19 mm (0.0043-0.0075 in)
Exhaust valve clearance:0.16-0.24 mm (0.0063-0.0094 in)
Oil system
Lubrication system:Splash type
Oil type:Honda 4-stroke or an equivalent (SF or SG)
Recommended oil:SAE 10W-30
Oil capacity:0.58 L (0.61 US. qt, 0.51 Imp. qt.)
Ignition system
Type:Transistorized magneto ignition
Ignition timing:B.T.D.C. 20°
Spark plug:NGK: BPR6ES
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Spark plug torque:20 N·m (2 kg·m, 14.7 ft·lb)
Ignition coil air gap0.2-0.6 mm (0.008-0.024 in)
